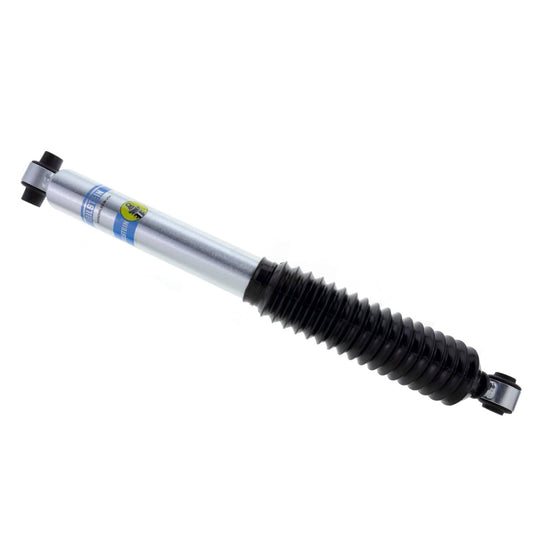

Bilstein's 33-061399 is a B8 5100 front shock absorber for 1988-2000 Chevrolet Blazer/K1500/K1500 Suburban & GMC K1500/K1500 Suburban/K2500. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Smooth Body (Non-Coilover)
- 46 mm piston
- 14 mm shaft
- Zinc Plated finish
- Dust boot included (Black Bellows)
- For 4WD models
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 33-061399 |
|---|---|
| Series | B8 5100 |
| Type | Suspension Shock Absorber |
| Position | Front |
| Internal design | Monotube |
| Body design | Smooth Body (Non-Coilover) |
| Collapsed length | 14.37" (365.0 mm) |
| Extended length | 22.78" (578.5 mm) |
| Stroke / travel | 8.41" |
| Upper mount | Eye 12.9mm |
| Lower mount | Eye 12.9mm |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Zinc Plated |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | Black Bellows |
| Spring seat included | No |
| Fitment qualifiers | 4WD |
| Shipping weight | 4.74 lb |
| Fits | 1988-2000 Chevrolet Blazer/K1500/K1500 Suburban & GMC K1500/K1500 Suburban/K2500 |
| Manufacturer applications | Chevrolet Blazer 1992-1994, K1500 1988-1999, K1500 Suburban 1992-1999, K2500 1988-2000, K2500 Suburban 1992-1999, K3500 1988-1999, Tahoe 1995-1999, GMC K1500 1988-1999, K1500 Suburban 1992-1999, K2500 1988-2000, K2500 Suburban 1992-1999, K |
Replaces / interchanges with: AutoZone 465280, Bilstein 24-185431, Bilstein BE5-6139, Bilstein F4-BE5-6139-H8, BQNV 33061399.
