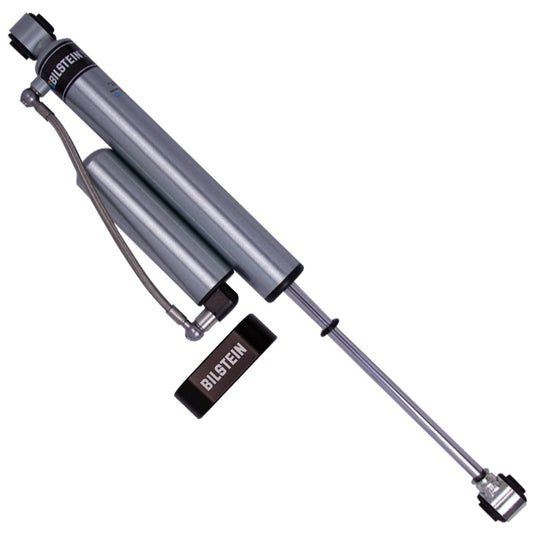

Bilstein's 25-316957 is a B8 5160 rear shock absorber for 2019-2026 Chevrolet Silverado 1500 & GMC Sierra 1500. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use. A remote reservoir adds oil capacity for heat control on rough or loaded use. Not for AT4/AT4X/Denali/Trail Boss/ZR2 models.
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
- Monotube design
- Smooth Body (Non-Coilover)
- 46 mm piston
- 14 mm shaft
- Zinc Plated finish
- Remote reservoir
- Billet reservoir clamp included
- For 4WD models
- Not for AT4/AT4X/Denali/Trail Boss/ZR2 models
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 25-316957 |
|---|---|
| Series | B8 5160 |
| Type | Suspension Shock Absorber |
| Position | Rear |
| Internal design | Monotube |
| Body design | Smooth Body (Non-Coilover) |
| Collapsed length | 15.51" (394.0 mm) |
| Extended length | 26.01" (660.7 mm) |
| Stroke / travel | 10.50" |
| Upper mount | Eye 14.1mm |
| Lower mount | Eye 14.1mm |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Zinc Plated |
| Reservoir | Yes |
| Adjustable damping | Non-Adjustable |
| Boot included | No |
| Spring seat included | No |
| Fitment qualifiers | 4WD |
| Shipping weight | 7.70 lb |
| Fits | 2019-2026 Chevrolet Silverado 1500 & GMC Sierra 1500 |
| Manufacturer applications | Chevrolet Silverado 1500 2019-2026, Silverado 1500 LTD 2022, GMC Sierra 1500 2019-2026, Sierra 1500 Limited 2022 |
Replaces / interchanges with: Bilstein 25-293487, BQNV 25316957, ICON Vehicle Dynamics 76526R.
