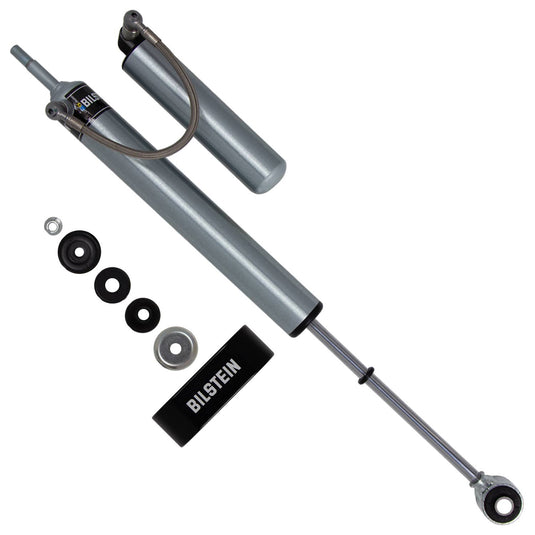

Bilstein's 25-311815 is a B8 5160 front shock absorber for 2005-2016 Ford F-250 Super Duty/F-350 Super Duty. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use. A remote reservoir adds oil capacity for heat control on rough or loaded use.
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
- Monotube design
- Smooth Body (Non-Coilover)
- 46 mm piston
- 14 mm shaft
- Zinc Plated finish
- Remote reservoir
- Billet reservoir clamp included
- Replacement mounting kit: B4-KT1-Z270A01
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 25-311815 |
|---|---|
| Series | B8 5160 |
| Type | Suspension Shock Absorber |
| Position | Front |
| Internal design | Monotube |
| Body design | Smooth Body (Non-Coilover) |
| Collapsed length | 15.96" (405.4 mm) |
| Extended length | 25.75" (654.0 mm) |
| Stroke / travel | 9.79" |
| Upper mount | Stem |
| Lower mount | Eye 14.4mm |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Zinc Plated |
| Reservoir | Yes |
| Adjustable damping | Non-Adjustable |
| Boot included | No |
| Spring seat included | No |
| Replacement mounting kit | B4-KT1-Z270A01 |
| Shipping weight | 10.00 lb |
| Fits | 2005-2016 Ford F-250 Super Duty/F-350 Super Duty |
| Manufacturer applications | Ford F-250 Super Duty 2005-2026, F-350 Super Duty 2005-2026 |
Replaces / interchanges with: Bilstein 25-177435, Bilstein 25-285321, Bilstein BR5-H743, Bilstein F4-BR5-H743-H0, BQNV 25311815, FOX Offroad Shocks 985-24-133, ICON Vehicle Dynamics 66513R.
