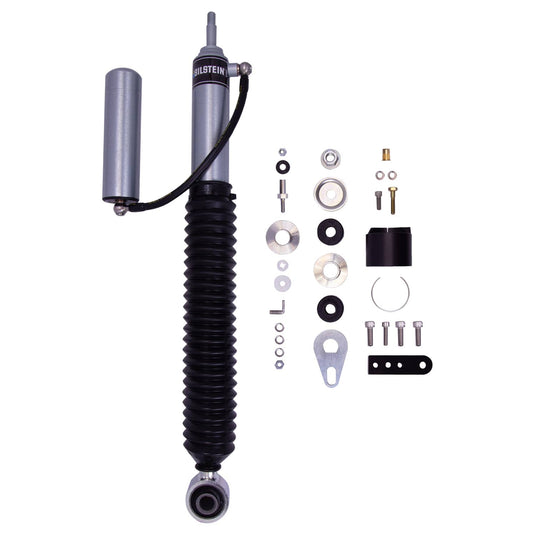

Bilstein's 25-311211 is a B8 5160 rear shock absorber for 2003-2024 Lexus GX & Toyota 4Runner. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use. A remote reservoir adds oil capacity for heat control on rough or loaded use.
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
- Monotube design
- Smooth Body (Non-Coilover)
- 46 mm piston
- 14 mm shaft
- Zinc Plated finish
- Remote reservoir
- Dust boot included (Black Bellows)
- Billet reservoir clamp included
- Replacement mounting kit: B4-KT1-Z434A00
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 25-311211 |
|---|---|
| Series | B8 5160 |
| Type | Suspension Shock Absorber |
| Position | Rear |
| Internal design | Monotube |
| Body design | Smooth Body (Non-Coilover) |
| Collapsed length | 14.50" (368.3 mm) |
| Extended length | 23.50" (597.0 mm) |
| Stroke / travel | 9.00" |
| Upper mount | Stem |
| Lower mount | Eye 19.25mm |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Zinc Plated |
| Reservoir | Yes |
| Adjustable damping | Non-Adjustable |
| Boot included | Black Bellows |
| Spring seat included | No |
| Replacement mounting kit | B4-KT1-Z434A00 |
| Replacement mounting kit 2 | B4-KT1-Z442A00 |
| Shipping weight | 8.80 lb |
| Fits | 2003-2024 Lexus GX & Toyota 4Runner |
| Manufacturer applications | Lexus GX460 2010-2023, GX470 2003-2009, Toyota 4Runner 2003-2024, FJ Cruiser 2007-2014 |
Replaces / interchanges with: Bilstein 25-227611, Bilstein 25-313154, BQNV 25311211, FOX Offroad Shocks 985-24-117, ICON Vehicle Dynamics 56505R.
