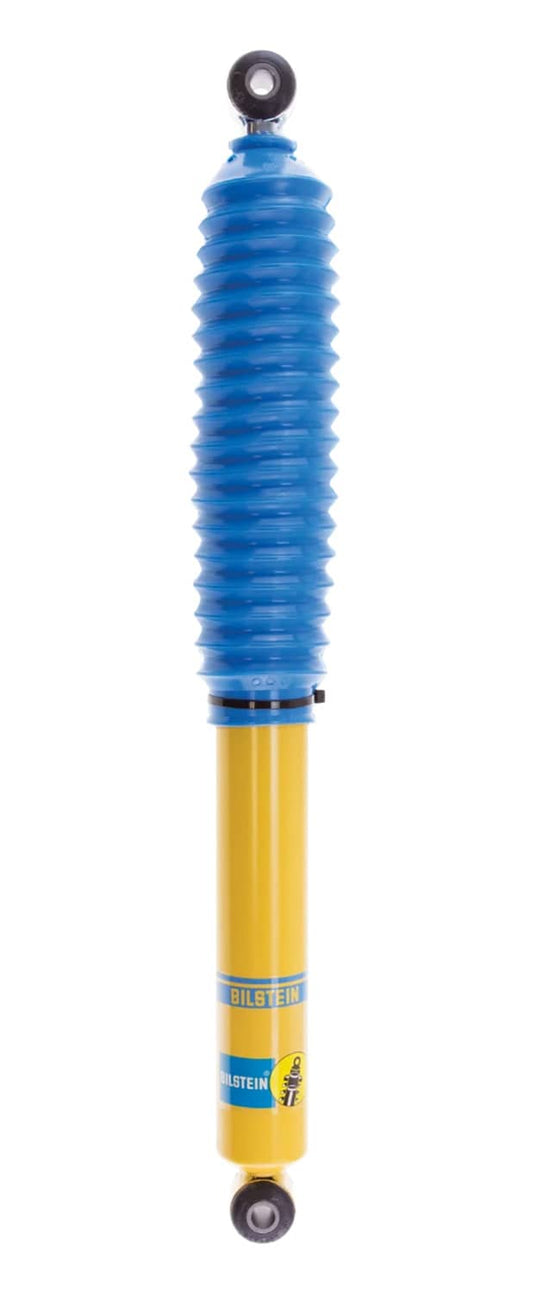

Bilstein's 24-337120 is a B6 4600 front shock absorber for 2015-2020 Ford F-150. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Snap Ring Grooved Body (Coilover)
- 46 mm piston
- 18 mm shaft
- Yellow Paint finish
- Spring seat included
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 24-337120 |
|---|---|
| Series | B6 4600 |
| Type | Suspension Shock Absorber |
| Position | Front |
| Internal design | Monotube |
| Body design | Snap Ring Grooved Body (Coilover) |
| Collapsed length | 16.91" (429.6 mm) |
| Extended length | 22.21" (564.1 mm) |
| Upper mount | Stem |
| Lower mount | Crossbar |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 18 mm |
| Finish | Yellow Paint |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | No |
| Spring seat included | Yes |
| Shipping weight | 8.00 lb |
| Fits | 2015-2020 Ford F-150 |
| Manufacturer applications | Ford F-150 2015-2020 |
Replaces / interchanges with: Bilstein 24-248112, BQNV 24337120, Ford FL3Z 18124-D, Ford FL3Z 18124-E, Ford FL3Z 18124-F, Ford FL3Z 18124-G, Ford GL3Z 18124-B, Ford GL3Z 18124-C, Ford GL3Z 18124-D, Ford GL3Z 18124-E, Ford JL3Z 18124-D, Ford JL3Z 18124-E, Ford JL3Z 18124-F, Ford JL3Z 18124-G, Ford JL3Z 18124-J, Ford JL3Z 18124-N, Ford JL3Z 18124-P, Ford JL3Z 18124-Q, Pro Comp Suspension ZX2118.
