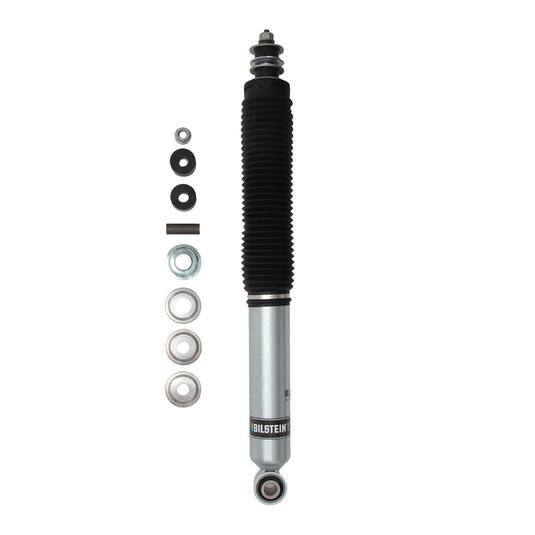

Bilstein's 24-333269 is a B8 6100 rear shock absorber for 2024-2026 Toyota Tacoma. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use. Sized for vehicles running a 0-1.5" lift.
Bilstein B8 6100 shock absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design with a large 2.65-in OD body and 60mm digressive piston maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while providing a smoother ride and more control over rough terrain. The B8 6100 will provide increased durability, making them perfect for vehicles subjected to rugged roads and harsh conditions.
- Monotube design
- Smooth Body (Non-coilover)
- 60 mm piston
- 18 mm shaft
- Zinc Plated finish
- Dust boot included (Black Bellows)
- Spring seat included
- For 0-1.5" lift
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 24-333269 |
|---|---|
| Series | B8 6100 |
| Type | Suspension Shock Absorber |
| Position | Rear |
| Internal design | Monotube |
| Body design | Smooth Body (Non-coilover) |
| Collapsed length | 16.55" (420.4 mm) |
| Extended length | 25.56" (649.2 mm) |
| Stroke / travel | 9.01" |
| Upper mount | Stem |
| Lower mount | Eye 19.1mm |
| Body diameter | 2.65" |
| Piston diameter | 60 mm |
| Shaft diameter | 18 mm |
| Finish | Zinc Plated |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | Black Bellows |
| Spring seat included | Yes |
| Lift range | 0-1.5" lift |
| Shipping weight | 10.55 lb |
| Fits | 2024-2026 Toyota Tacoma |
| Manufacturer applications | Toyota Tacoma 2024-2026 |
Replaces / interchanges with: Toyota 48530-8Z281, Toyota 48530-8Z283, Toyota 48530-8Z285.
