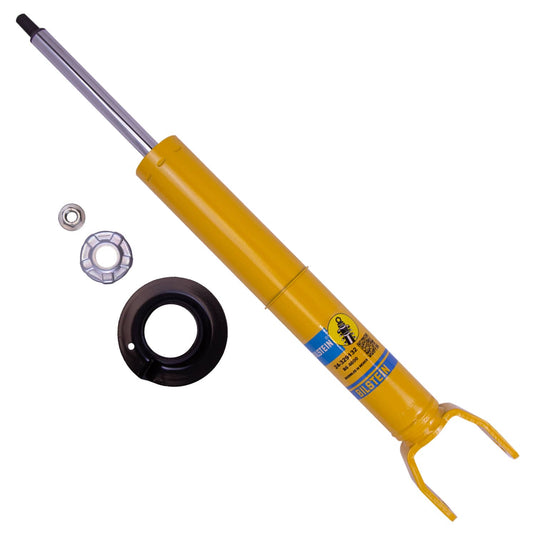

Bilstein's 24-329132 is a B6 4600 front shock absorber for 2019-2026 Ram 1500. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Smooth Body (Non-coilover)
- 46 mm piston
- 18 mm shaft
- Yellow Paint finish
- Spring seat included
- Replacement mounting kit: B4-KT1-Z417A00
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 24-329132 |
|---|---|
| Series | B6 4600 |
| Type | Suspension Shock Absorber |
| Position | Front |
| Internal design | Monotube |
| Body design | Smooth Body (Non-coilover) |
| Collapsed length | 16.00" (406.5 mm) |
| Extended length | 22.08" (560.9 mm) |
| Stroke / travel | 6.08" |
| Upper mount | Stem |
| Lower mount | Clevis |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 18 mm |
| Finish | Yellow Paint |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | No |
| Spring seat included | Yes |
| Replacement mounting kit | B4-KT1-Z417A00 |
| Shipping weight | 6.40 lb |
| Fits | 2019-2026 Ram 1500 |
| Manufacturer applications | Ram 1500 2019-2026 |
Replaces / interchanges with: Bilstein 24-228831, BQNV 24329132, Dodge 68404035AD, Dodge 68404036AD, Dodge 68404037AD.
