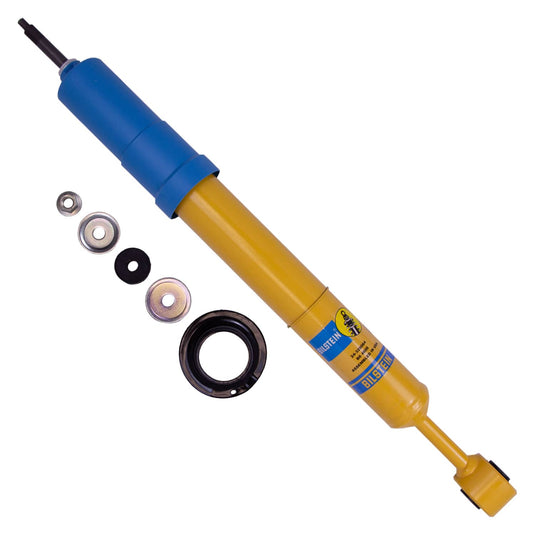

Bilstein's 24-329064 is a B6 4600 front shock absorber for 2010-2024 Toyota 4Runner/FJ Cruiser. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Smooth Body (Non-coilover)
- 46 mm piston
- 14 mm shaft
- Yellow Paint finish
- Dust boot included (Blue Straight)
- Replacement mounting kit: B4-KT1-Z333A01
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 24-329064 |
|---|---|
| Series | B6 4600 |
| Type | Suspension Shock Absorber |
| Position | Front |
| Internal design | Monotube |
| Body design | Smooth Body (Non-coilover) |
| Collapsed length | 17.19" (436.5 mm) |
| Extended length | 22.19" (563.7 mm) |
| Stroke / travel | 4.81" |
| Upper mount | Stem |
| Lower mount | Eye 14.2mm |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Yellow Paint |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | Blue Straight |
| Spring seat included | No |
| Replacement mounting kit | B4-KT1-Z333A01 |
| Shipping weight | 6.30 lb |
| Fits | 2010-2024 Toyota 4Runner/FJ Cruiser |
| Manufacturer applications | Lexus GX460 2010-2023, Toyota 4Runner 2010-2024, FJ Cruiser 2010-2014 |
Replaces / interchanges with: Bilstein 24-187541, Bilstein BE5-H150, Bilstein F4-BE5-H150-H0, BQNV 24329064, Lexus 48510-69485, Lexus 48510-69495, Lexus 48510-69585, Pro Comp Suspension 622053, Pro Comp Suspension ZX2080, Rancho RS5777, Rancho RS7777, Rancho RS999777, Toyota 48510-09Y70, Toyota 48510-80494, Toyota 48510-80495, Toyota 48510-80497, Toyota 48510-80498, Toyota 48510-80507, Toyota 48510-80508, Toyota 48510-8Z030.
