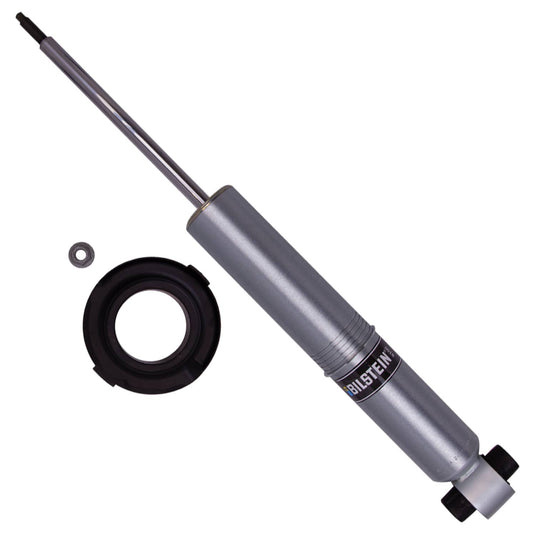

Bilstein's 24-318600 is a B8 6100 rear shock absorber for 2021-2026 Ford Bronco. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 2.65 OD body and 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.
- Ride height adjustable
- Monotube design
- Snap Ring Grooved Body (Coilover)
- 60 mm piston
- 18 mm shaft
- Zinc Plated finish
- Spring seat included
- For 4-door models
- Replacement mounting kit: B4-KT1-Z472A00
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 24-318600 |
|---|---|
| Series | B8 6100 (Ride Height Adjustable) |
| Type | Suspension Shock Absorber |
| Position | Rear |
| Internal design | Monotube |
| Body design | Snap Ring Grooved Body (Coilover) |
| Collapsed length | 17.11" (434.6 mm) |
| Extended length | 25.56" (649.3 mm) |
| Stroke / travel | 4.15" |
| Upper mount | Stem |
| Lower mount | Eye 20.2mm |
| Body diameter | 2.65" |
| Piston diameter | 60 mm |
| Shaft diameter | 18 mm |
| Finish | Zinc Plated |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | No |
| Spring seat included | Yes |
| Replacement mounting kit | B4-KT1-Z472A00 |
| Fitment qualifiers | 4-Door |
| Shipping weight | 15.00 lb |
| Fits | 2021-2026 Ford Bronco |
| Manufacturer applications | Ford Bronco 2021-2026 |
Replaces / interchanges with: BQNV 24318600, ICON Vehicle Dynamics 48612.
