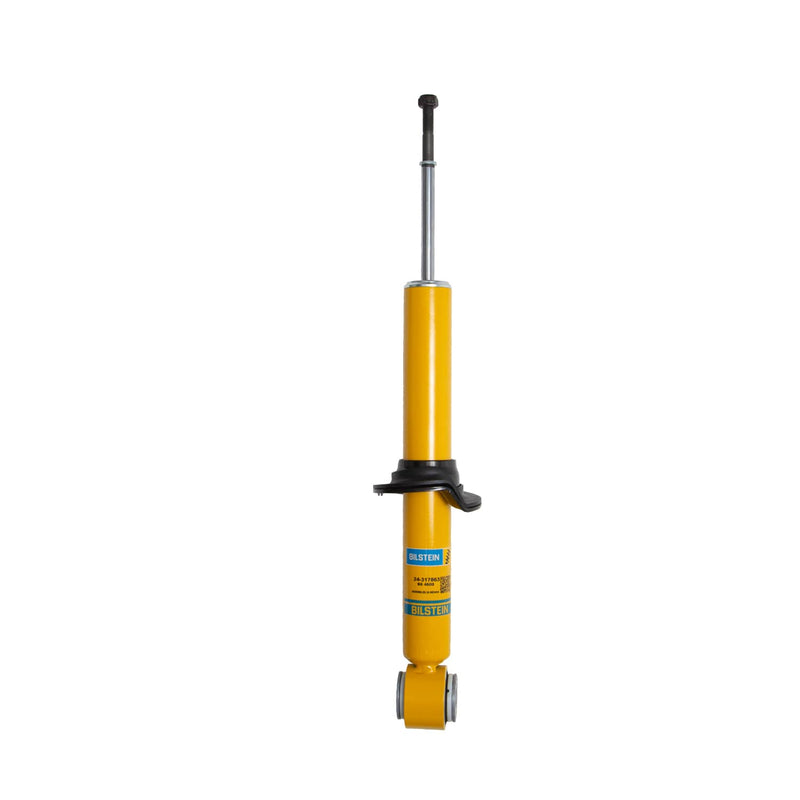

Bilstein's 24-317863 is a B6 4600 front shock absorber for 2009-2013 Ford F-150. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Smooth Body (Non-coilover)
- 46 mm piston
- 14 mm shaft
- Yellow Paint finish

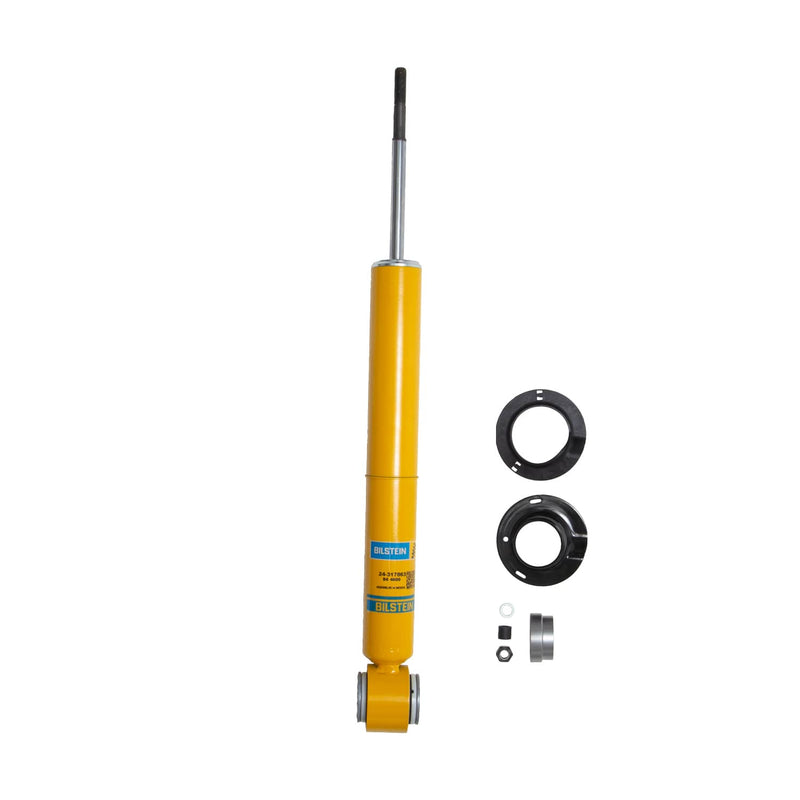

- Spring seat included
- For 4WD models
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 24-317863 |
|---|---|
| Series | B6 4600 |
| Type | Suspension Shock Absorber |
| Position | Front |
| Internal design | Monotube |
| Body design | Smooth Body (Non-coilover) |
| Collapsed length | 16.93" (430.0 mm) |
| Extended length | 21.66" (550.2 mm) |
| Stroke / travel | 4.73" |
| Upper mount | Stem |
| Lower mount | Eye 20.3mm |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Yellow Paint |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | No |
| Spring seat included | Yes |
| Fitment qualifiers | 4WD |
| Shipping weight | 5.84 lb |
| Fits | 2009-2013 Ford F-150 |
| Manufacturer applications | Ford F-150 2009-2013 |
Replaces / interchanges with: Bilstein 24-187404, Bilstein BE5-G551, Bilstein F4-BE5-G551-H0, BQNV 24317863, Ford 9L3Z 18124-DE, Ford 9L3Z 18124-EE, Ford 9L3Z 18124-FE, Ford AL3Z 18124-DA, Ford AL3Z 18124-EA, Ford AL3Z 18124-FA, Ford AL3Z 18124-GA, Ford AL3Z 18124-SB, Ford BL3Z 18124-F, Ford CL3Z 18124-B, Pro Comp Suspension 621553, Pro Comp Suspension ZX2109, Rancho RS5803.
