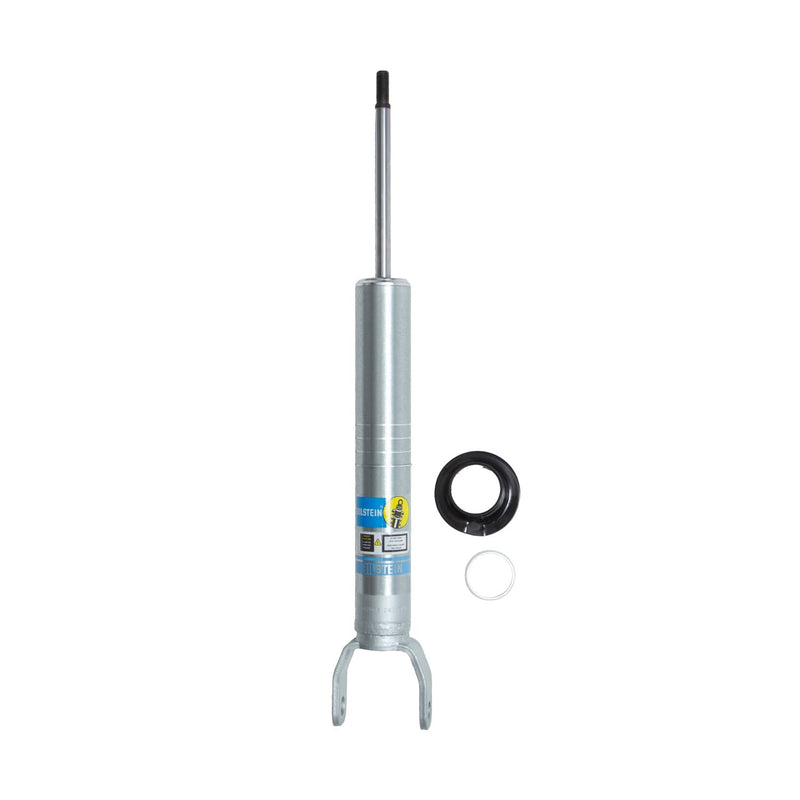

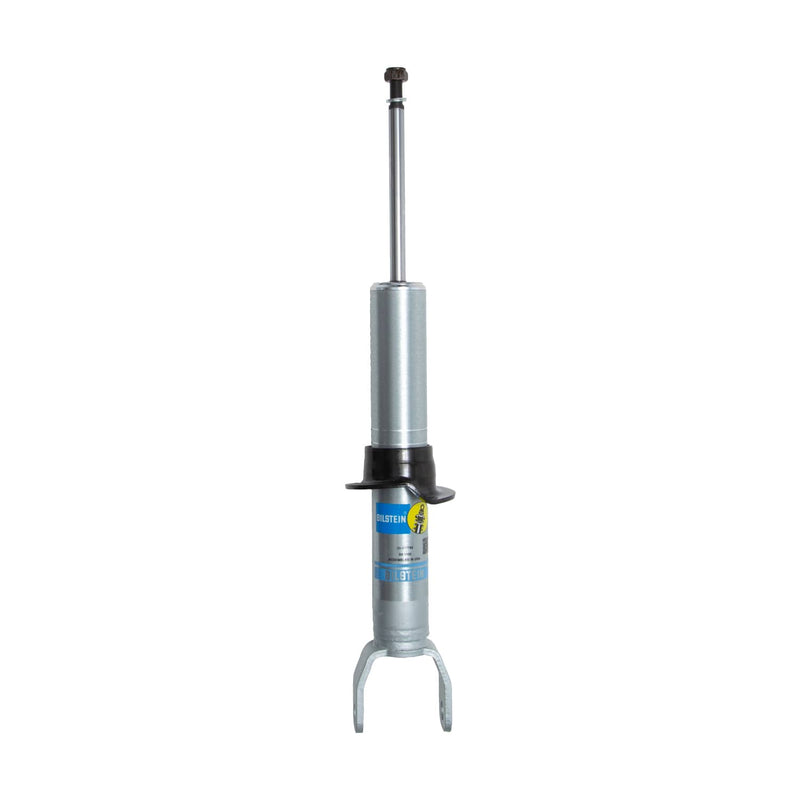

Bilstein's 24-317795 is a B8 5100 front shock absorber for 2006-2008 Dodge Ram 1500. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
- Ride height adjustable
- Monotube design
- Snap Ring Grooved Body (Coilover)
- 46 mm piston
- 14 mm shaft
- Zinc Plated finish
- Spring seat included
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 24-317795 |
|---|---|
| Series | B8 5100 (Ride Height Adjustable) |
| Type | Suspension Shock Absorber |
| Position | Front |
| Internal design | Monotube |
| Body design | Snap Ring Grooved Body (Coilover) |
| Collapsed length | 15.18" (385.5 mm) |
| Extended length | 21.29" (540.7 mm) |
| Stroke / travel | 6.11" |
| Upper mount | Stem |
| Lower mount | Clevis |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Zinc Plated |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | No |
| Spring seat included | Yes |
| Shipping weight | 15.00 lb |
| Fits | 2006-2008 Dodge Ram 1500 |
| Manufacturer applications | Dodge Ram 1500 2006-2008 |
Replaces / interchanges with: Bilstein 24-186988, Bilstein BE5-E523, Bilstein F4-BE5-E523-H0, BQNV 24317795.
