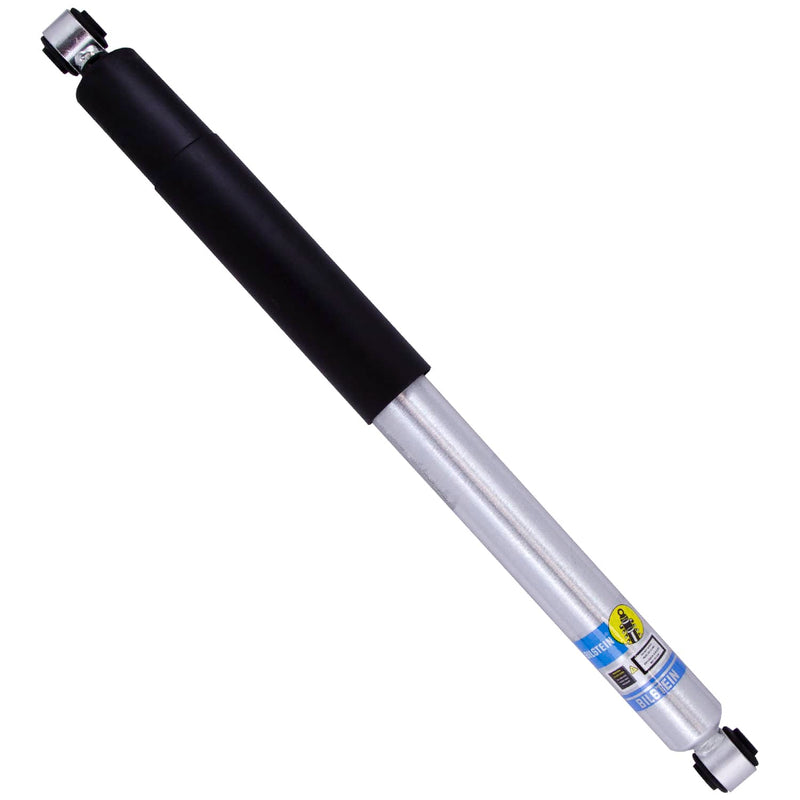

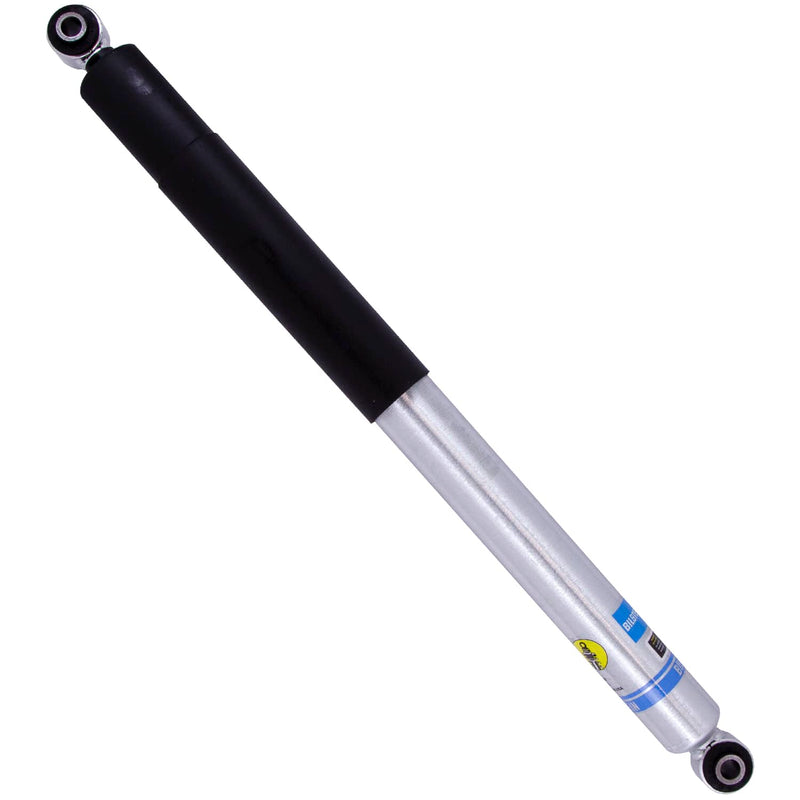

Bilstein's 24-309516 is a B8 5100 rear shock absorber for 2019-2026 Chevrolet Silverado 1500 & GMC Sierra 1500. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use. Sized for vehicles running a 2-3" lift.
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Smooth Body (Non-coilover)
- 46 mm piston
- 14 mm shaft
- Zinc Plated finish
- Dust boot included (Black Straight)
- For 2-3" lift
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 24-309516 |
|---|---|
| Series | B8 5100 |
| Type | Suspension Shock Absorber |
| Position | Rear |
| Internal design | Monotube |
| Body design | Smooth Body (Non-coilover) |
| Collapsed length | 17.40" (442.0 mm) |
| Extended length | 27.61" (701.2 mm) |
| Stroke / travel | 10.21" |
| Upper mount | Eye 14.12mm |
| Lower mount | Eye 14.12mm |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Zinc Plated |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | Black Straight |
| Spring seat included | No |
| Lift range | 2-3" lift |
| Shipping weight | 6.00 lb |
| Fits | 2019-2026 Chevrolet Silverado 1500 & GMC Sierra 1500 |
| Manufacturer applications | Chevrolet Silverado 1500 2019-2026, Silverado 1500 LTD 2022, GMC Sierra 1500 2019-2026, Sierra 1500 Limited 2022 |
Replaces / interchanges with: BQNV 24309516, Rancho RS77269.
