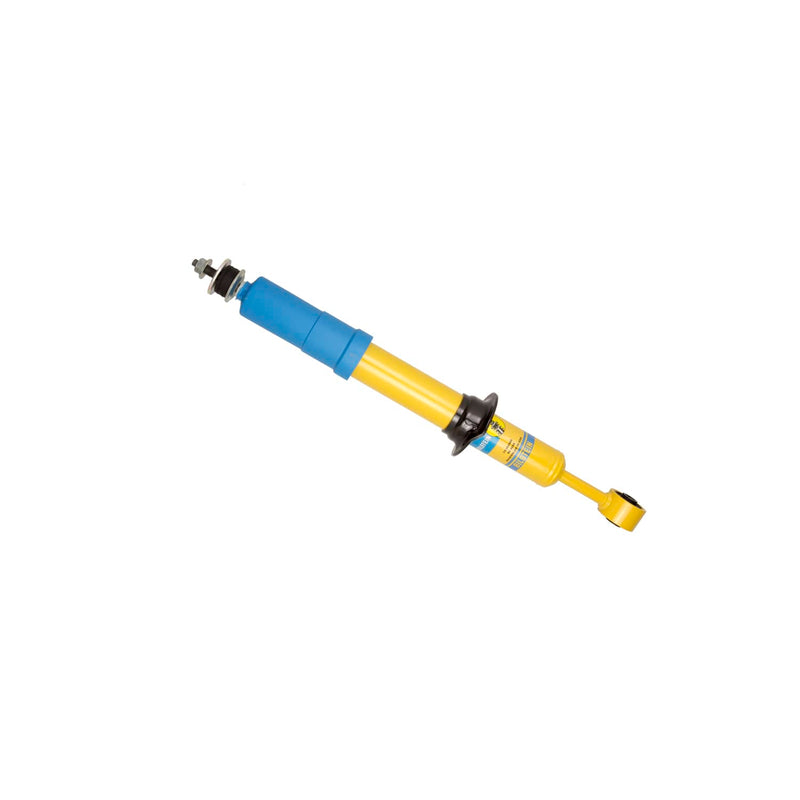

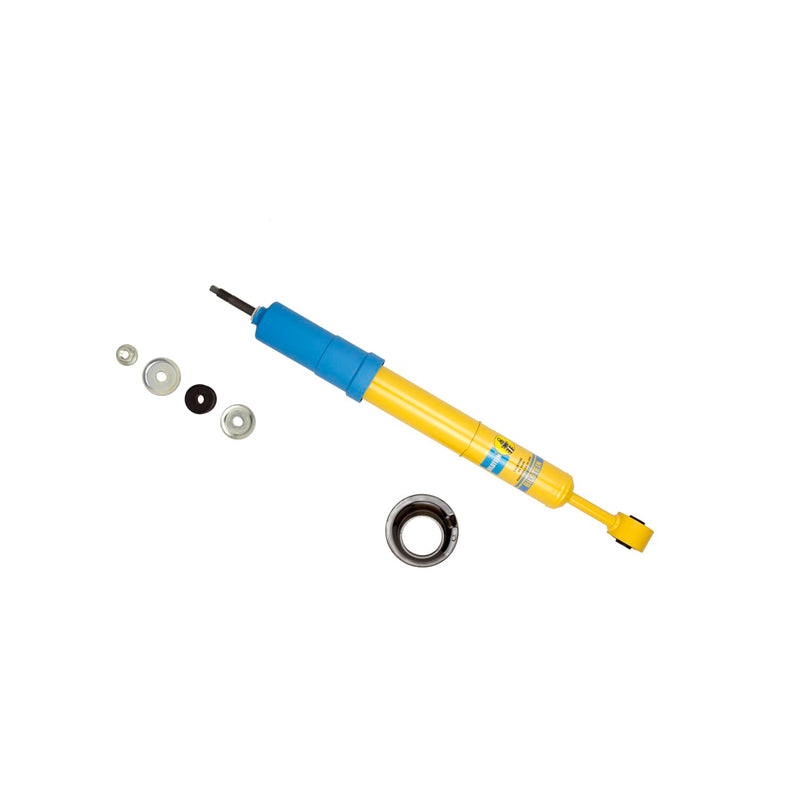

Bilstein's 24-265966 is a B6 4600 front shock absorber for 2016-2023 Toyota Tacoma. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Snap Ring Grooved Body (Coilover)
- 46 mm piston
- 14 mm shaft
- Yellow Paint finish
- Dust boot included (Blue Straight)
- Spring seat included
- Replacement mounting kit: B4-KT1-Z333A01
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 24-265966 |
|---|---|
| Series | B6 4600 |
| Type | Suspension Shock Absorber |
| Position | Front |
| Internal design | Monotube |
| Body design | Snap Ring Grooved Body (Coilover) |
| Collapsed length | 17.60" (447.0 mm) |
| Extended length | 21.80" (553.7 mm) |
| Upper mount | Stem |
| Lower mount | Eye 14mm |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Yellow Paint |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | Blue Straight |
| Spring seat included | Yes |
| Replacement mounting kit | B4-KT1-Z333A01 |
| Shipping weight | 6.19 lb |
| Fits | 2016-2023 Toyota Tacoma |
| Manufacturer applications | Toyota Tacoma 2016-2023 |
Replaces / interchanges with: AutoZone 546611, BQNV 24265966, Toyota 48510-8Z253, Toyota 48510-8Z254, Toyota 48510-8Z255, Toyota 48510-8Z359, Toyota 48510-8Z360, Toyota 48510-8Z447, Toyota 48510-8Z448.
