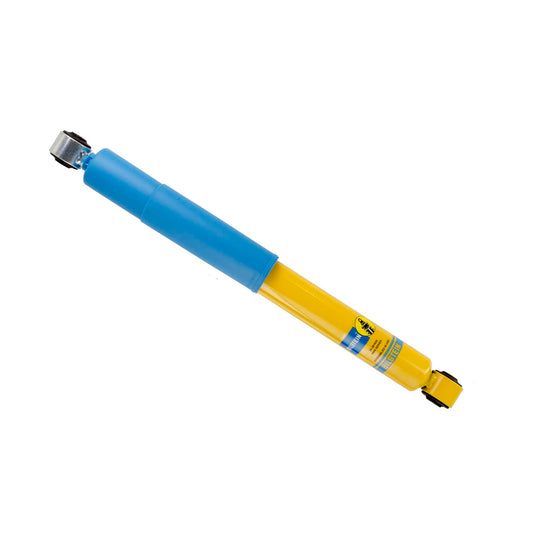

Bilstein's 24-261630 is a B6 4600 rear shock absorber for 2015-2022 Chevrolet Colorado & GMC Canyon. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Smooth Body (Non-Coilover)
- 46 mm piston
- 14 mm shaft
- Yellow Paint finish
- Dust boot included (Blue Straight)
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 24-261630 |
|---|---|
| Series | B6 4600 |
| Type | Suspension Shock Absorber |
| Position | Rear |
| Internal design | Monotube |
| Body design | Smooth Body (Non-Coilover) |
| Collapsed length | 14.41" (366.0 mm) |
| Extended length | 22.45" (570.2 mm) |
| Upper mount | Eye 14.4mm |
| Lower mount | Eye 14.4mm |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Yellow Paint |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | Blue Straight |
| Spring seat included | No |
| Shipping weight | 4.96 lb |
| Fits | 2015-2022 Chevrolet Colorado & GMC Canyon |
| Manufacturer applications | Chevrolet Colorado 2015-2022, GMC Canyon 2015-2022 |
Replaces / interchanges with: AutoZone 527606, BQNV 24261630, FOX Offroad Shocks 985-24-129, Rancho RS5023.
