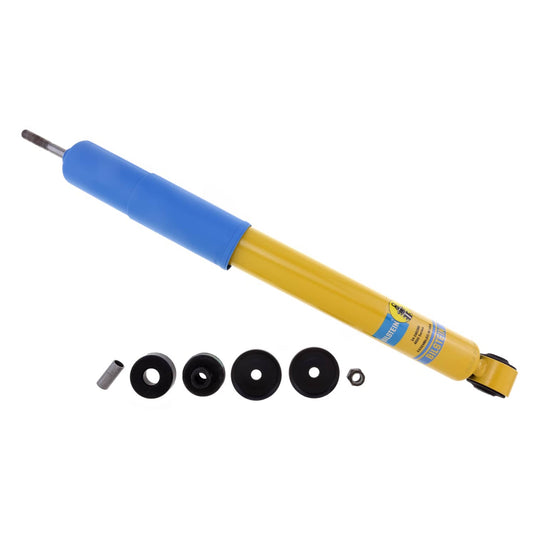

Bilstein's 24-240390 is a B6 4600 front shock absorber for 2014-2018 Ram 2500. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Smooth Body (Non-Coilover)
- 46 mm piston
- 14 mm shaft
- Yellow Paint finish
- Dust boot included (Blue Straight)
- Replacement mounting kit: B4-KT1-Z223A01
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 24-240390 |
|---|---|
| Series | B6 4600 |
| Type | Suspension Shock Absorber |
| Position | Front |
| Internal design | Monotube |
| Body design | Smooth Body (Non-Coilover) |
| Collapsed length | 14.69" (373.0 mm) |
| Extended length | 21.40" (543.5 mm) |
| Upper mount | Stem |
| Lower mount | Eye 14.4mm |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Yellow Paint |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | Blue Straight |
| Spring seat included | No |
| Replacement mounting kit | B4-KT1-Z223A01 |
| Shipping weight | 5.09 lb |
| Fits | 2014-2018 Ram 2500 |
| Manufacturer applications | Ram 2500 2014-2018 |
Replaces / interchanges with: AutoZone 805470, BQNV 24240390, Dodge 68234550AC, Dodge 68234550AD, Dodge 68234554AC, Dodge 68234554AD, Dodge 68234935AD, Dodge 68234935AE, Dodge 68234938AA, Dodge 68234938AB, Dodge 68234938AC, Dodge 68234950AC, Dodge 68234950AD, Dodge 68234951AD, Dodge 68234951AE, Dodge 68234954AC, Dodge 68234955AE, FOX Offroad Shocks 980-24-677, Pro Comp Suspension 922553, Rancho RS5197, Rancho RS999197.
