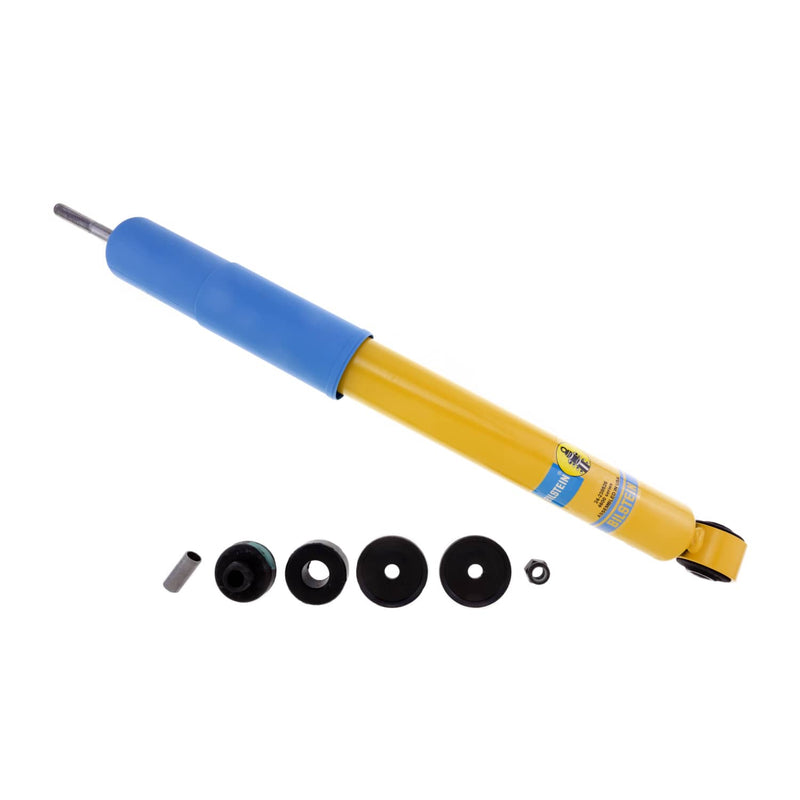

Bilstein's 24-238526 is a B6 4600 front shock absorber for 2013-2018 Ram 3500. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Smooth Body (Non-Coilover)
- 46 mm piston
- 14 mm shaft
- Yellow Paint finish
- Dust boot included (Blue Straight)

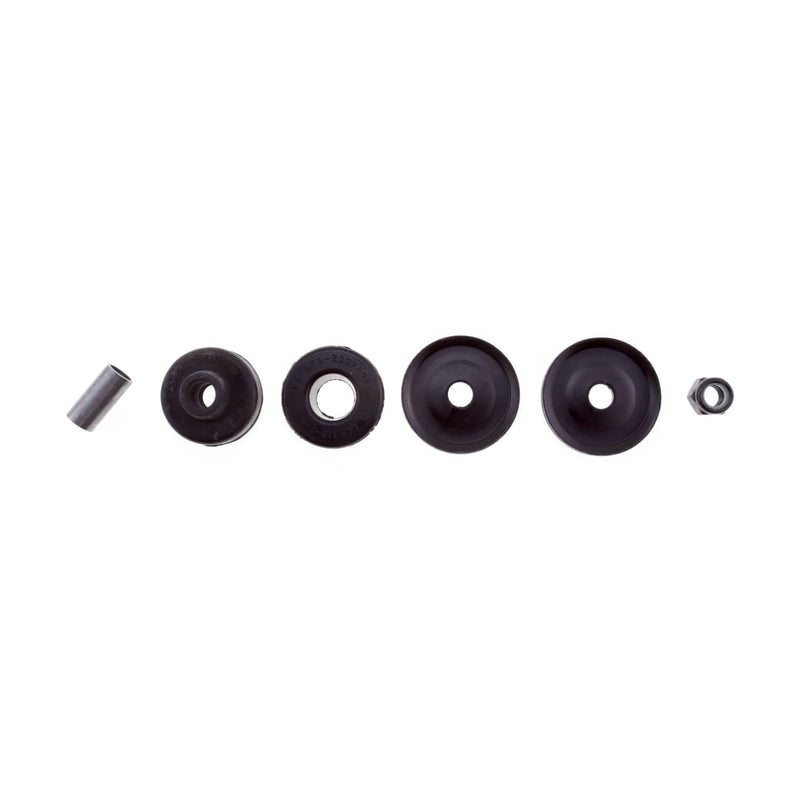

- Replacement mounting kit: B4-KT1-Z223A01
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 24-238526 |
|---|---|
| Series | B6 4600 |
| Type | Suspension Shock Absorber |
| Position | Front |
| Internal design | Monotube |
| Body design | Smooth Body (Non-Coilover) |
| Collapsed length | 14.69" (373.0 mm) |
| Extended length | 21.43" (544.2 mm) |
| Upper mount | Stem |
| Lower mount | Eye 14.4mm |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Yellow Paint |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | Blue Straight |
| Spring seat included | No |
| Replacement mounting kit | B4-KT1-Z223A01 |
| Shipping weight | 5.16 lb |
| Fits | 2013-2018 Ram 3500 |
| Manufacturer applications | Ram 3500 2013-2018 |
Replaces / interchanges with: AutoZone 805467, BQNV 24238526, Dodge 68190900AA, Dodge 68190900AB, Dodge 68190900AC, Dodge 68190900AE, Dodge 68190901AA, Dodge 68190902AA, Dodge 68190903AA, Dodge 68190904AA, Dodge 68190904AC, Dodge 68190904AE, Dodge 68190905AA, Dodge 68190906AA, Dodge 68190907AA, Dodge 68229739AB, Dodge 68229739AE, Dodge 68235552AA, Dodge 68235554AA, Dodge 68235555AA, Dodge 68235576AA, Dodge 68235577AA, Dodge 68235577AC, Dodge 68235578AA, Dodge 68235579AA, Dodge 68235580AA, Dodge 68235581AA, Dodge 68235582AA, Dodge 68235583AA, FOX Offroad Shocks 980-24-677, Pro Comp Suspension 922553, Rancho RS5197, Rancho RS999197.
