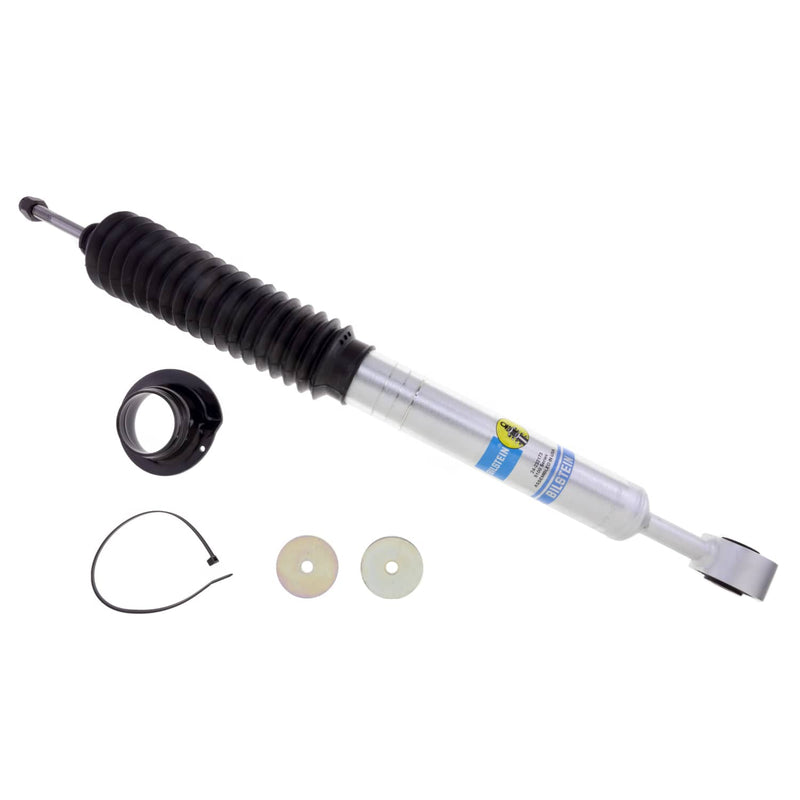

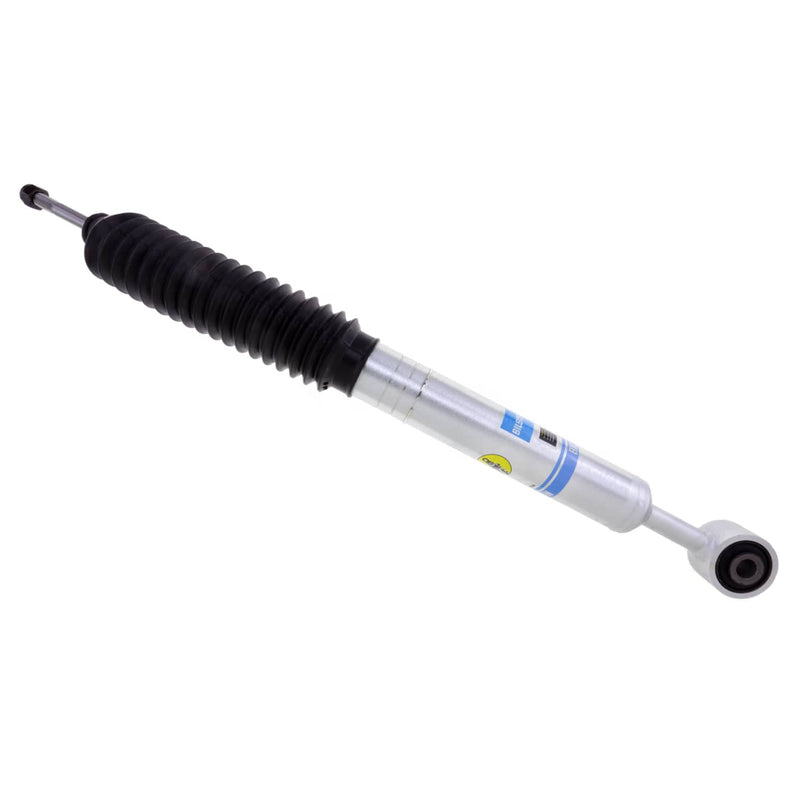

Bilstein's 24-232173 is a B8 5100 front shock absorber for 2007-2021 Toyota Tundra. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
- Ride height adjustable
- Monotube design
- Snap Ring Grooved Body (Coilover)
- 46 mm piston
- 14 mm shaft
- Zinc Plated finish
- Dust boot included (Black Bellows)

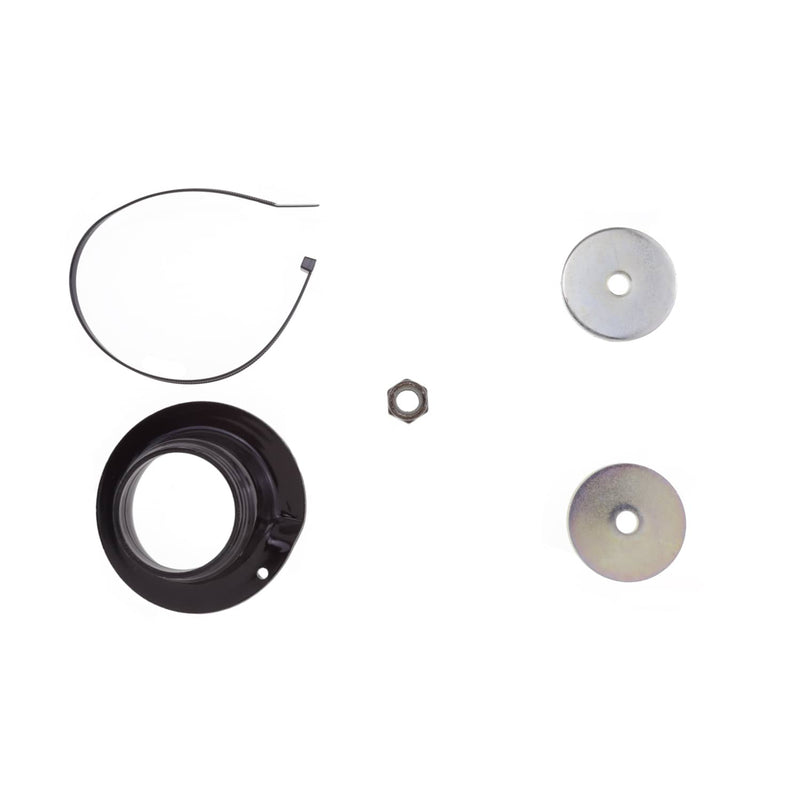

- Spring seat included
- For 4WD models
- Replacement mounting kit: B4-KT1-Z243A02
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 24-232173 |
|---|---|
| Series | B8 5100 (Ride Height Adjustable) |
| Type | Suspension Shock Absorber |
| Position | Front |
| Internal design | Monotube |
| Body design | Snap Ring Grooved Body (Coilover) |
| Collapsed length | 17.77" (451.3 mm) |
| Extended length | 24.35" (618.5 mm) |
| Stroke / travel | 6.44" |
| Upper mount | Stem |
| Lower mount | Eye 16.4mm |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Zinc Plated |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | Black Bellows |
| Spring seat included | Yes |
| Replacement mounting kit | B4-KT1-Z243A02 |
| Fitment qualifiers | 4WD |
| Shipping weight | 6.94 lb |
| Fits | 2007-2021 Toyota Tundra |
| Manufacturer applications | Toyota Tundra 2007-2021 |
Replaces / interchanges with: AutoZone 805381, Bilstein 24-186964, BQNV 24232173, FOX Offroad Shocks 985-62-003, Rancho RS77759.
