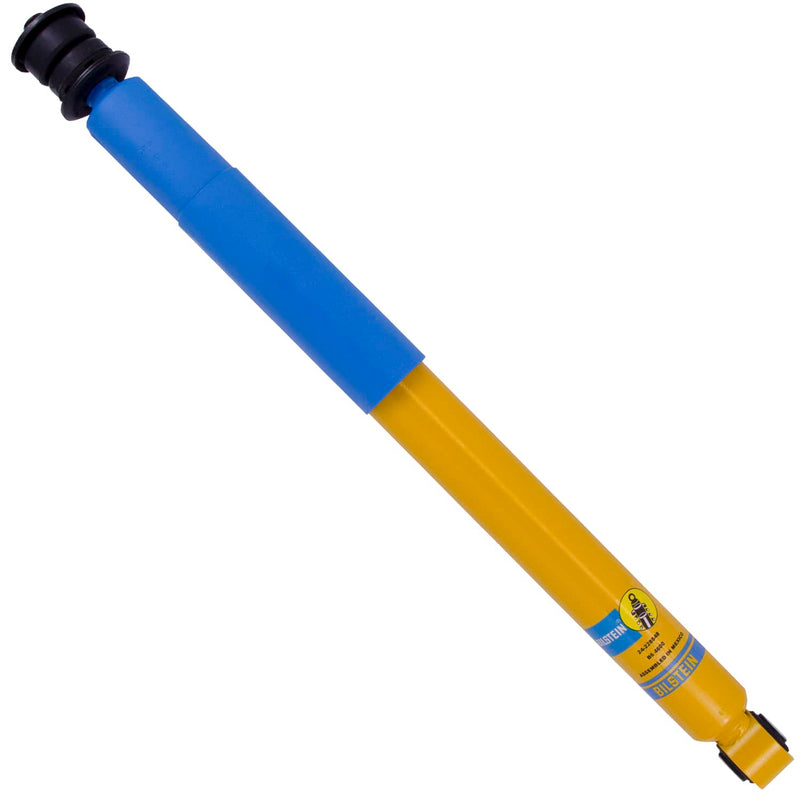

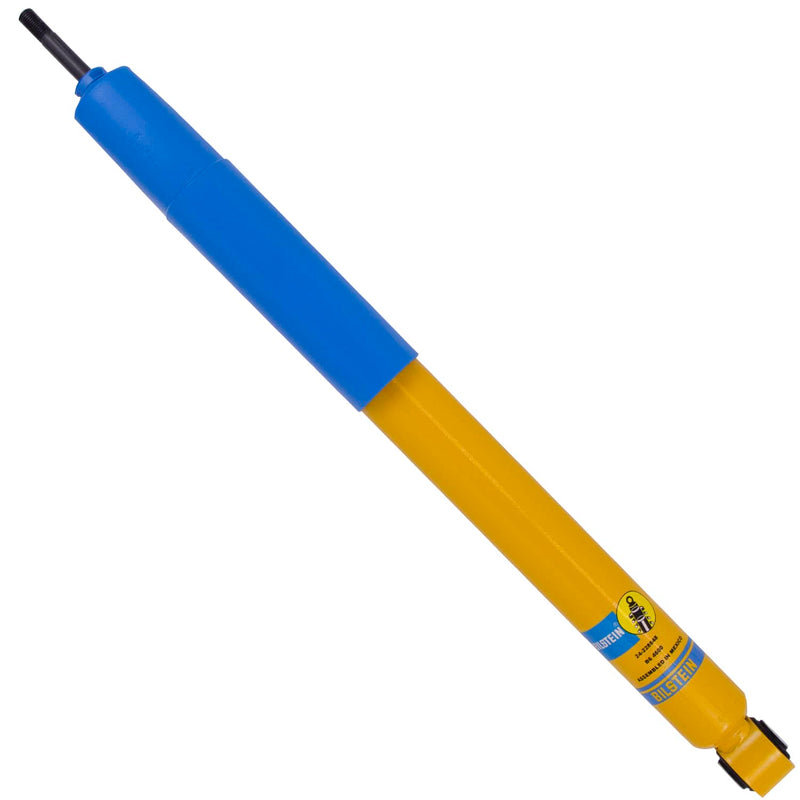

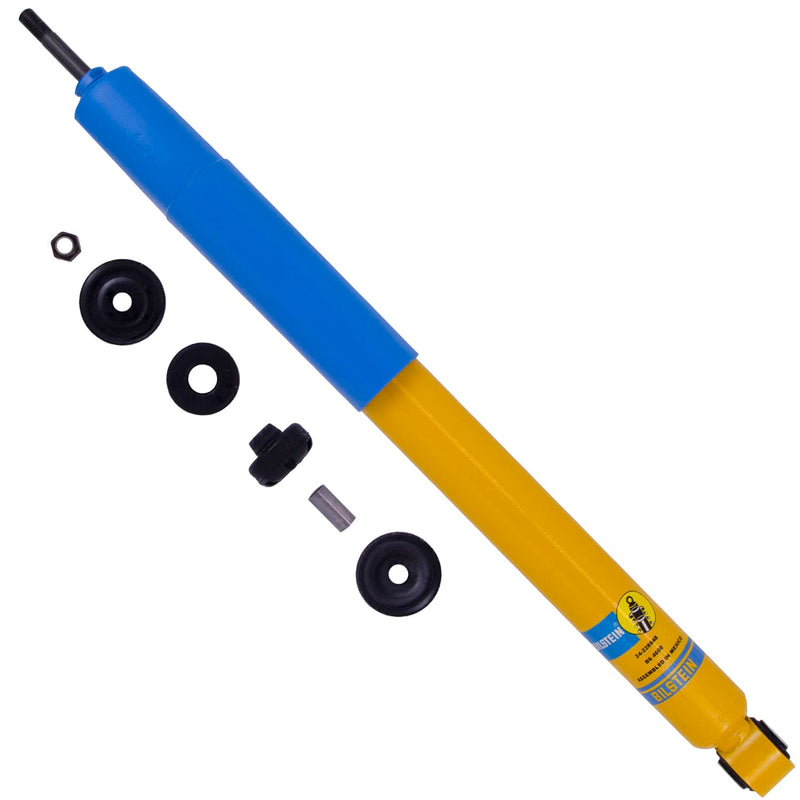

Bilstein's 24-228848 is a B6 4600 rear shock absorber for 2019-2026 Ram 1500. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Smooth Body (Non-coilover)
- 46 mm piston
- 14 mm shaft
- Yellow Paint finish
- Dust boot included (Blue Straight)

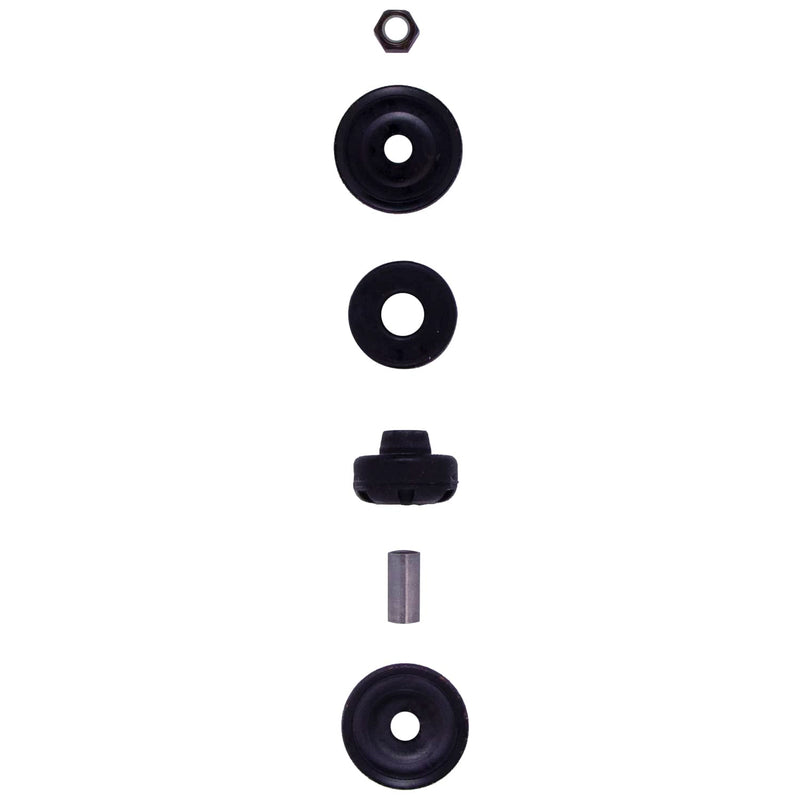

- Replacement mounting kit: B4-KT1-Z223A01
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 24-228848 |
|---|---|
| Series | B6 4600 |
| Type | Suspension Shock Absorber |
| Position | Rear |
| Internal design | Monotube |
| Body design | Smooth Body (Non-coilover) |
| Collapsed length | 15.69" (398.5 mm) |
| Extended length | 24.69" (627.0 mm) |
| Stroke / travel | 9.00" |
| Upper mount | Stem |
| Lower mount | Eye 14.1mm |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Yellow Paint |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | Blue Straight |
| Spring seat included | No |
| Replacement mounting kit | B4-KT1-Z223A01 |
| Shipping weight | 6.00 lb |
| Fits | 2019-2026 Ram 1500 |
| Manufacturer applications | Ram 1500 2019-2026 |
Replaces / interchanges with: BQNV 24228848, Dodge 68262589AC, Dodge 68262590AC, Dodge 68262592AC, Dodge 68262594AA, Dodge 68262595AA, Dodge 68262599AB.
