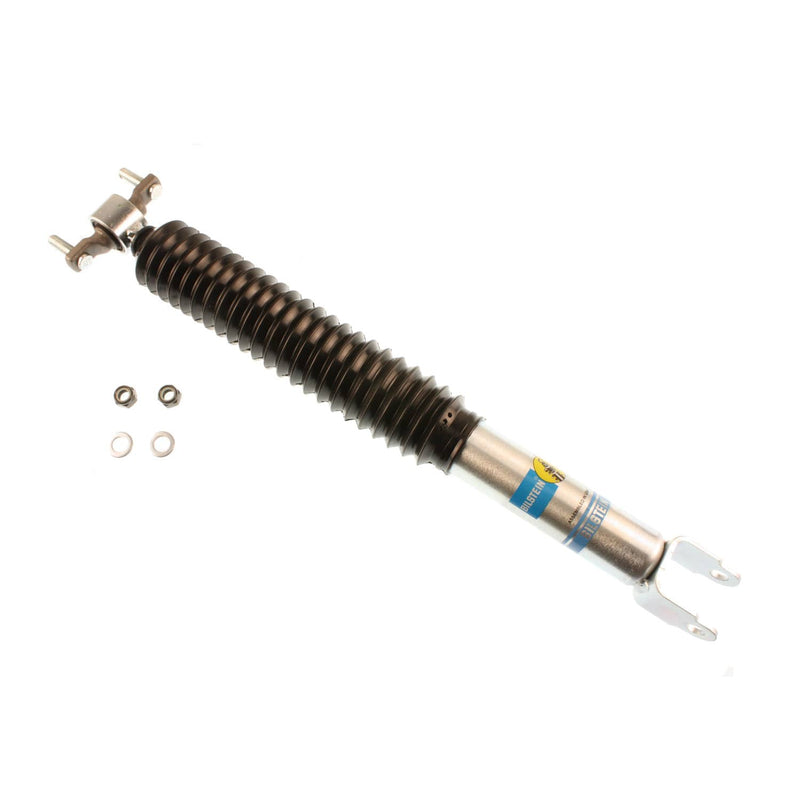

Bilstein's 24-218023 is a B8 5100 front shock absorber for 2011-2026 Chevrolet Silverado 2500 HD/Silverado 3500 HD & GMC Sierra 2500 HD/Sierra 3500 HD. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use. Sized for vehicles running a 4-6" lift.
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Smooth Body (Non-Coilover)
- 46 mm piston
- 14 mm shaft
- Zinc Plated finish
- Dust boot included (Black Bellows)
- For 4-6" lift
- Replacement mounting kit: B4-KT1-Z275A00
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 24-218023 |
|---|---|
| Series | B8 5100 |
| Type | Suspension Shock Absorber |
| Position | Front |
| Internal design | Monotube |
| Body design | Smooth Body (Non-Coilover) |
| Collapsed length | 15.98" (406.0 mm) |
| Extended length | 24.26" (616.2 mm) |
| Stroke / travel | 8.25" |
| Upper mount | Bar Pin |
| Lower mount | Clevis |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 14 mm |
| Finish | Zinc Plated |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | Black Bellows |
| Spring seat included | No |
| Replacement mounting kit | B4-KT1-Z275A00 |
| Lift range | 4-6" lift |
| Shipping weight | 6.24 lb |
| Fits | 2011-2026 Chevrolet Silverado 2500 HD/Silverado 3500 HD & GMC Sierra 2500 HD/Sierra 3500 HD |
| Manufacturer applications | Chevrolet Silverado 2500 HD 2011-2026, Silverado 3500 HD 2011-2026, GMC Sierra 2500 HD 2011-2026, Sierra 3500 HD 2011-2026 |
Replaces / interchanges with: AutoZone 165465, BQNV 24218023, FOX Offroad Shocks 980-24-658.
