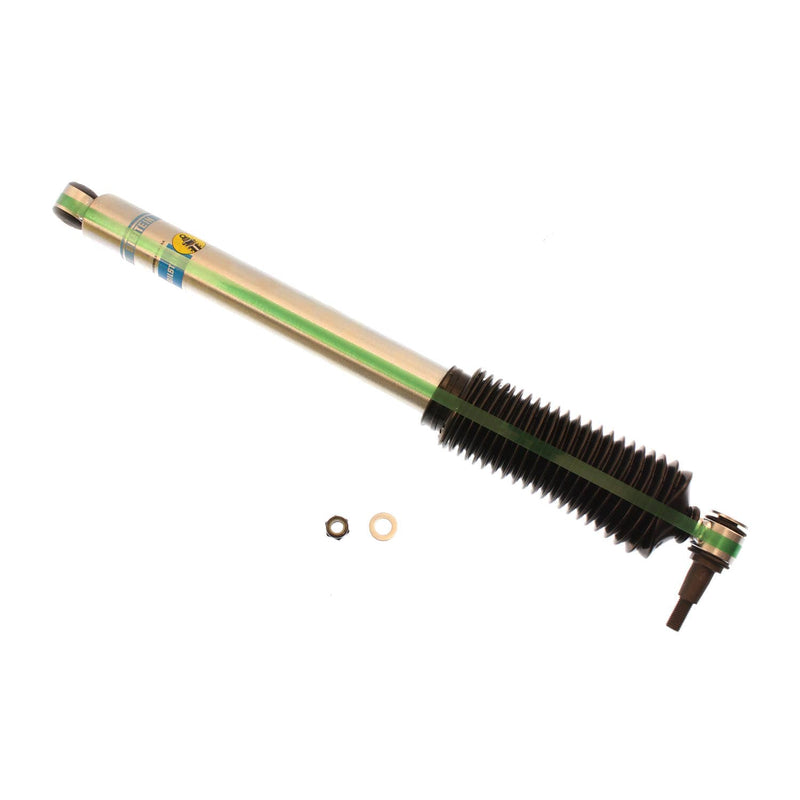

Bilstein's 24-196284 is a B8 5100 steering damper for 2008-2016 Ford F-250 Super Duty/F-350 Super Duty. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B8 5100 (Steering Damper) is designed as an upgrade to factory steering dampers on trucks and SUVs. Utilizing our proven design, these steering dampers are able to dampen minute movements in the steering and reduce steering vibrations that naturally occur, especially in older vehicles. These steering dampers are zinc coated for resistance to harsh elements and match to all B8 5100 series products. B8 5100 (Steering Damper) will offer a significant improvement in steering, handling and comfort.
- Monotube design
- Smooth Body (Non-Coilover)
- 46 mm piston
- 11 mm shaft
- Zinc Plated finish
- Dust boot included (Black Bellows)
- Replacement mounting kit: B4-KT1-Z279A00
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 24-196284 |
|---|---|
| Series | B8 5100 |
| Type | Steering Damper |
| Internal design | Monotube |
| Body design | Smooth Body (Non-Coilover) |
| Collapsed length | 19.13" (486.0 mm) |
| Extended length | 27.44" (697.0 mm) |
| Stroke / travel | 8.31" |
| Upper mount | Eye 12mm |
| Lower mount | Cantilever |
| Body diameter | 2.0" |
| Piston diameter | 46 mm |
| Shaft diameter | 11 mm |
| Finish | Zinc Plated |
| Reservoir | No |
| Boot included | Black Bellows |
| Replacement mounting kit | B4-KT1-Z279A00 |
| Shipping weight | 5.60 lb |
| Fits | 2008-2016 Ford F-250 Super Duty/F-350 Super Duty |
| Manufacturer applications | Ford F-250 Super Duty 2008-2016, F-350 Super Duty 2008-2016 |
Replaces / interchanges with: AutoZone 165455, BQNV 24196284, FOX Offroad Shocks 985-24-001.
