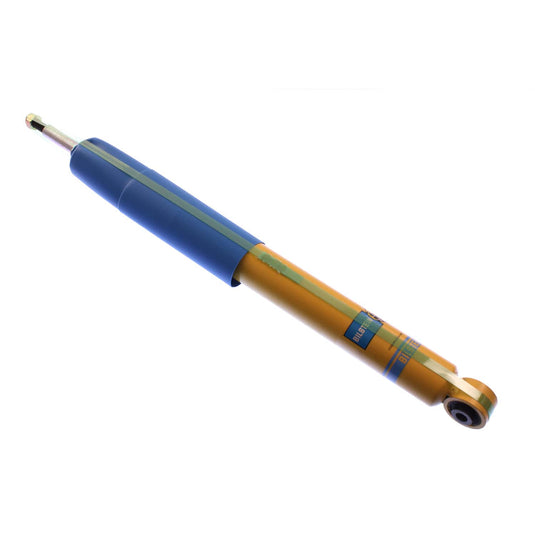

Bilstein's 24-186247 is a B6 4600 rear shock absorber for 2007-2021 Toyota Tundra. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Yellow Paint finish
- Dust boot included (Blue Straight)
- Replacement mounting kit: B4-KT1-Z350A00
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 24-186247 |
|---|---|
| Series | B6 4600 |
| Type | Suspension Shock Absorber |
| Position | Rear |
| Internal design | Monotube |
| Collapsed length | 14.98" (380.5 mm) |
| Extended length | 24.45" (621.0 mm) |
| Upper mount | Stem |
| Lower mount | Eye 12.4mm |
| Body diameter | 2.0" |
| Finish | Yellow Paint |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | Blue Straight |
| Spring seat included | No |
| Replacement mounting kit | B4-KT1-Z350A00 |
| Shipping weight | 4.63 lb |
| Fits | 2007-2021 Toyota Tundra |
| Manufacturer applications | Toyota Tundra 2007-2021 |
Replaces / interchanges with: AutoZone 52967, Bilstein BE5-E236, Bilstein F4-BE5-E236-H0, BQNV 24186247, FOX Offroad Shocks 980-24-673, Pro Comp Suspension 322518, Pro Comp Suspension 922518, Pro Comp Suspension MX6147, Pro Comp Suspension ZX2024, Rancho RS5324, Toyota 48530-09M80, Toyota 48530-09M90, Toyota 48530-09N10, Toyota 48530-09N20, Toyota 48530-09N40, Toyota 48530-09N50, Toyota 48530-09N91, Toyota 48530-09N92, Toyota 48530-09N93, Toyota 48530-09N94, Toyota 48530-09N95, Toyota 48530-09N96.
