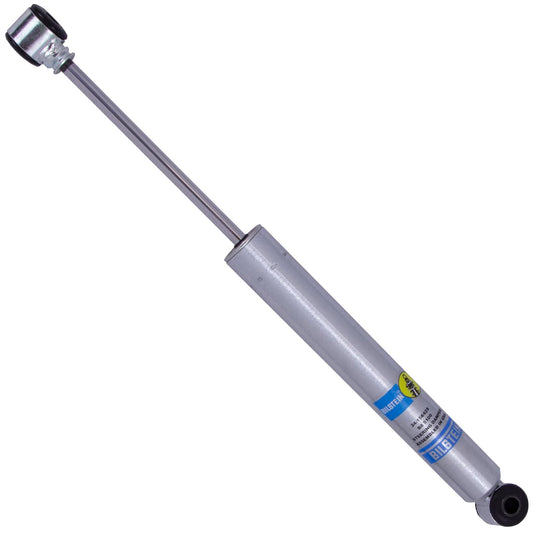

Bilstein's 24-158428 is a B8 5100 steering damper for 2007-2018 Jeep Wrangler/Wrangler JK. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B8 5100 (Steering Damper) is designed as an upgrade to factory steering dampers on trucks and SUVs. Utilizing our proven design, these steering dampers are able to dampen minute movements in the steering and reduce steering vibrations that naturally occur, especially in older vehicles. These steering dampers are zinc coated for resistance to harsh elements and match to all B8 5100 series products. B8 5100 (Steering Damper) will offer a significant improvement in steering, handling and comfort.
- Monotube design
- Smooth Body (Non-Coilover)
- 36 mm piston
- 11 mm shaft
- Zinc Plated finish
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 24-158428 |
|---|---|
| Series | B8 5100 |
| Type | Steering Damper |
| Internal design | Monotube |
| Body design | Smooth Body (Non-Coilover) |
| Collapsed length | 13.19" (335.0 mm) |
| Extended length | 20.01" (508.3 mm) |
| Stroke / travel | 6.82" |
| Upper mount | Eye 12.7mm |
| Lower mount | Eye 12.7mm |
| Body diameter | 2.0" |
| Piston diameter | 36 mm |
| Shaft diameter | 11 mm |
| Finish | Zinc Plated |
| Reservoir | No |
| Boot included | No |
| Shipping weight | 2.90 lb |
| Fits | 2007-2018 Jeep Wrangler/Wrangler JK |
| Manufacturer applications | Jeep Wrangler 2007-2017, Wrangler JK 2018 |
Replaces / interchanges with: AutoZone 450473, Bilstein BE3-F842, Bilstein F4-BE3-F842-H0, BQNV 24158428, FOX Offroad Shocks 985-24-145, Rancho RS77418.
