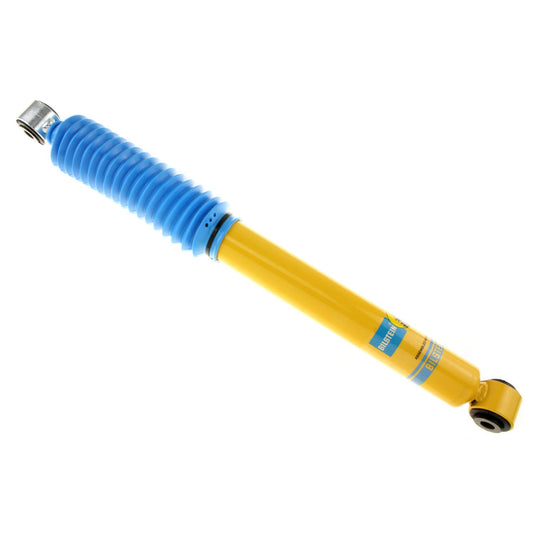

Bilstein's 24-116244 is a B6 4600 rear shock absorber for 2004-2015 Nissan Titan. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Yellow Paint finish
- Dust boot included (Blue Straight)
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 24-116244 |
|---|---|
| Series | B6 4600 |
| Type | Suspension Shock Absorber |
| Position | Rear |
| Internal design | Monotube |
| Collapsed length | 15.31" (388.8 mm) |
| Extended length | 24.41" (620.0 mm) |
| Upper mount | Eye 14mm |
| Lower mount | Eye 14mm |
| Body diameter | 2.0" |
| Finish | Yellow Paint |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | Blue Straight |
| Spring seat included | No |
| Shipping weight | 5.75 lb |
| Fits | 2004-2015 Nissan Titan |
| Manufacturer applications | Nissan TITAN 2004-2015 |
Replaces / interchanges with: AutoZone 930608, Bilstein BE5-B624, Bilstein F4-BE5-B624-H0, BQNV 24116244, FOX Offroad Shocks 985-24-031, Nissan 56200-7S325, Nissan 56200-7S326, Nissan E6200-9FG0A, Nissan E6200-9FG0B, Nissan E6200-9FG1A, Nissan E6200-ZR40A, Nissan E6200-ZR40B, Nissan E6200-ZR50A, Nissan E6200-ZR51A, Nissan E6200-ZR51B, Pro Comp Suspension 925543, Pro Comp Suspension ZX2045, Rancho RS5394, Rancho RS999303.
