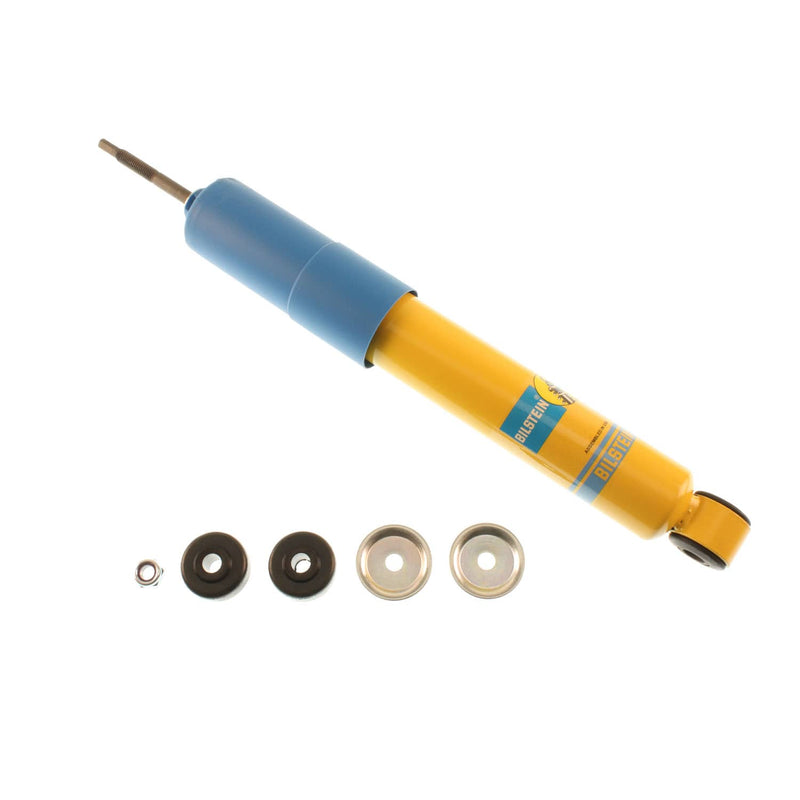

Bilstein's 24-060813 is a B6 4600 front shock absorber for 1999-2013 Chevrolet Avalanche 2500/Silverado 1500 HD & GMC Sierra 1500 HD/Sierra 2500 & more. It uses Bilstein's monotube construction, which keeps the gas and oil separated so damping stays consistent under sustained use.
Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Monotube design
- Yellow Paint finish
- Dust boot included (Black Straight)

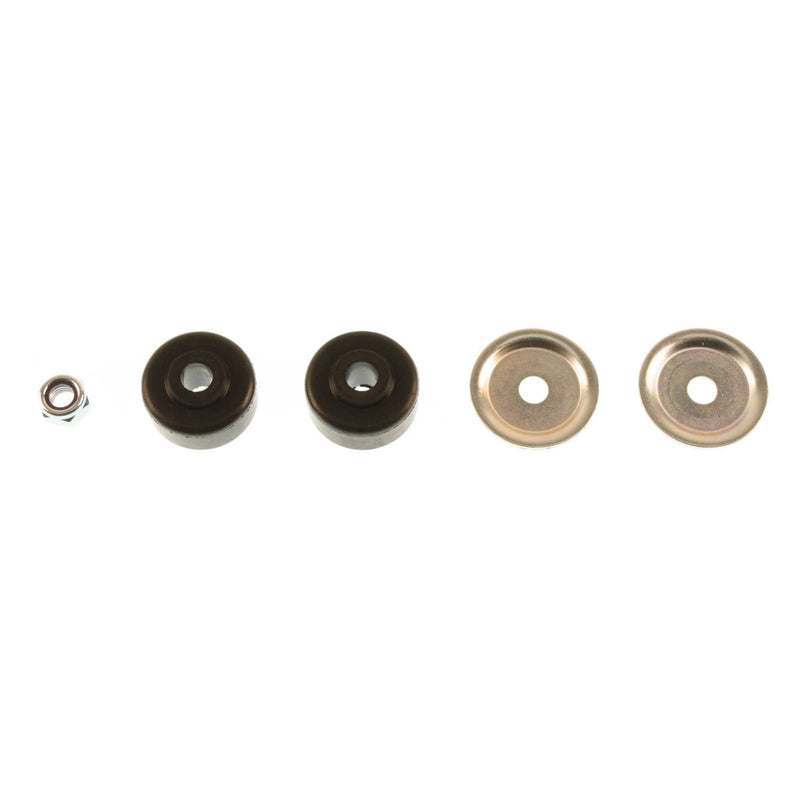

- Replacement mounting kit: B4-KT1-Z097A00
- Direct-fit replacement, application-specific valving
Specifications
| Part number | 24-060813 |
|---|---|
| Series | B6 4600 |
| Type | Suspension Shock Absorber |
| Position | Front |
| Internal design | Monotube |
| Collapsed length | 11.14" (283.0 mm) |
| Extended length | 15.31" (389.0 mm) |
| Upper mount | Stem |
| Lower mount | Eye 14.1mm |
| Body diameter | 2.0" |
| Finish | Yellow Paint |
| Reservoir | No |
| Adjustable damping | Non-Adjustable |
| Boot included | Black Straight |
| Spring seat included | No |
| Replacement mounting kit | B4-KT1-Z097A00 |
| Shipping weight | 3.86 lb |
| Fits | 1999-2013 Chevrolet Avalanche 2500/Silverado 1500 HD & GMC Sierra 1500 HD/Sierra 2500 & more |
| Manufacturer applications | Chevrolet Avalanche 2500 2002-2006, Silverado 1500 HD 2001-2003, Silverado 1500 HD 2005-2006, Silverado 2500 1999-2004, Silverado 2500 HD 2001-2010, Silverado 2500 HD Classic 2007, Silverado 3500 2001-2006, Silverado 3500 Classic 2007, Sil |
Replaces / interchanges with: AutoZone 293012, Bilstein BE5-6081, Bilstein F4-BE5-6081-H2, BQNV 24060813, Chevrolet 15210858, Chevrolet 15753519, Chevrolet 19152878, Chevrolet 19177927, Chevrolet 19208003, Chevrolet 19208627, Chevrolet 19209331, Chevrolet 19300054, Chevrolet 20951274, Chevrolet 20951275, Chevrolet 22064861, Chevrolet 22064862, Chevrolet 22064863, Chevrolet 22400057, Chevrolet 22400058, Chevrolet 88983817, FOX Offroad Shocks 980-24-663, General Motors 15210858, General Motors 15753519, General Motors 19152878, General Motors 19177927, General Motors 19208003, General Motors 19208627, General Motors 19209331, General Motors 19300054, General Motors 20951274, General Motors 20951275, General Motors 22064861, General Motors 22064862, General Motors 22064863, General Motors 22400057, General Motors 22400058, General Motors 88983817, General Motors 89038595, General Motors 89040182, GMC 15210858, GMC 15753519, GMC 19152878, GMC 19177927, GMC 19208003, GMC 19208627, GMC 19209331, GMC 19300054, GMC 20951274, GMC 20951275, GMC 22064861, GMC 22064862, GMC 22064863, GMC 22400057, GMC 22400058, GMC 88983817, Pro Comp Suspension 915551, Rancho RS5288, Rancho RS999288.
