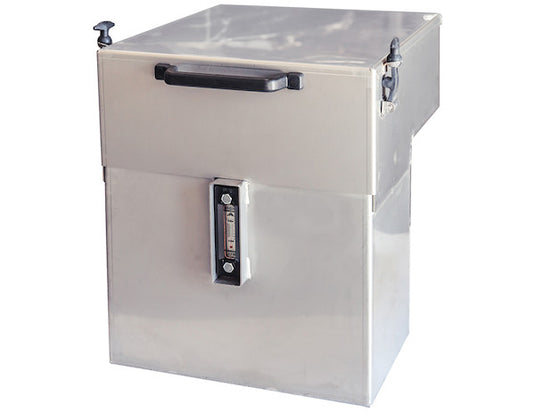

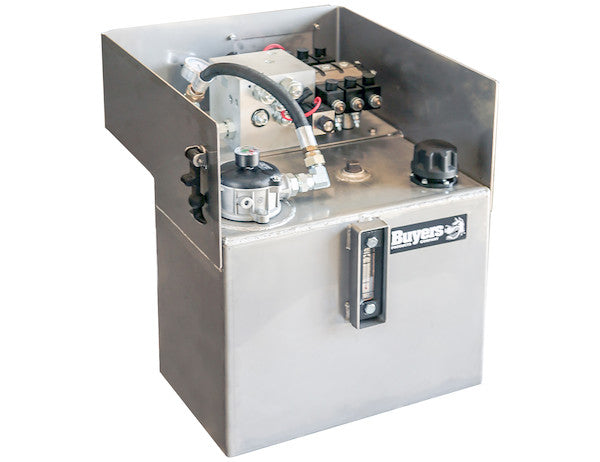

This 15 gallon central hydraulic system combines a 304 stainless steel hydraulic tank, valve enclosure and electric on/off controls in one assembly for powering a hoist, plow, spreader and pre-wet system. It ships with the compact reservoir configuration and the GPS ground speed control system, which adjusts spreader flow rate automatically with vehicle speed. Install the reservoir assembly, plumb the flow and functions, and the truck is set up.
- All-in-one reservoir and valve assembly for a 6-function plow, spreader and hoist setup.
- GPS ground speed control included: spreader flow rate adjusts automatically to vehicle speed.
- Directional valves and spreader controls mount directly on the tank to streamline plumbing and service.
- Electric in-cab controls remove the need to plumb hydraulic lines into the cab, saving space and cutting heat and noise.
- 304 stainless steel reservoir stands up to salt and weather.
- LED display with indexed dials, 1-30 second programmable blast and low pressure pre-wet indicator.
- Detented plow switch provides float in the down position; 30 GPM adjustable flow divider.
Specifications
- Reservoir capacity: 15 gallons
- Reservoir material: 304 stainless steel
- Functions supported: 6
- Maximum flow rate: 28 GPM
- Maximum pressure: 3000 PSI
- Main relief setting: 2500 PSI
- Inlet port: 3/4 SAE ORB (-12) | Outlet port: 2 in. NPT
- Auger/chain port: 1/2 SAE ORB (-8)
- Hoist action: Power up/power down, 1 port relief
- GPS ground speed control: Included
- Magnetic drain plug: Yes
