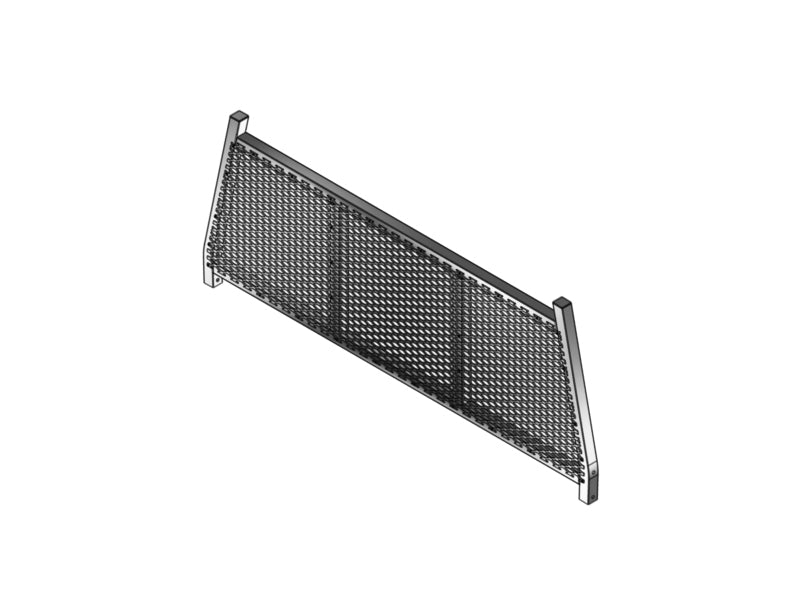

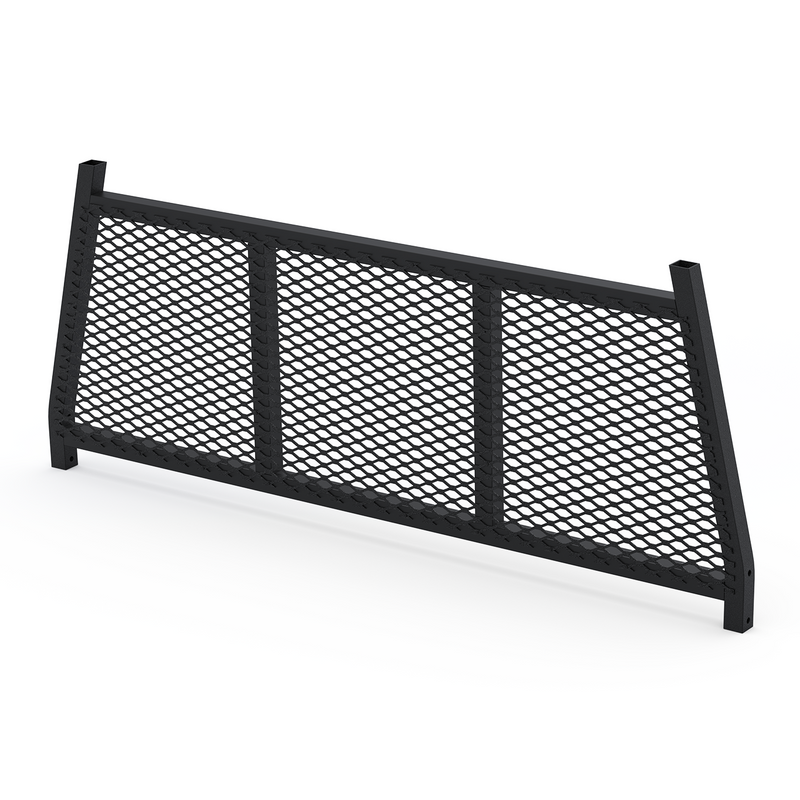

Cab guards are the starting point for your truck rack. Whether you are building a full rack with rail caps and a rear rack or you are building a standalone cab guard you will first need to determine what style of cab guard will meet your needs. If it’s superior window or cab protection you are after then a full mesh cab guard is what you need! Full mesh cab guards offer the most protection over the line up of Westcan cab guards. The full mesh cab guard is constructed from premium structural anodized aluminum tubing. Having been constructed with no steel it will be free of any rust in the future! Be sure to order your desired no-drill install kit as it is not included! Your options are standard install kit or crossover install kit. Crossover install kit are only to be used when installing a crossover tool box. For all other applications use the standard no-drill install kit. Westcan supplies all non-corrosive and stainless steel hardware for installation.
Vehicle Compatibility
| Make | Model | Box Length | Model Year | Length | Depth | Height |
|---|---|---|---|---|---|---|
| Chevrolet | Colorado | Extra Short Box | 2004-2012 | 61-1/4 | 1-1/2 | 24-5/8 |
| Chevrolet | Colorado | Short Box | 2004-2012 | 61-1/4 | 1-1/2 | 24-5/8 |
| GMC | Canyon | Extra Short Box | 2004-2012 | 61-1/4 | 1-1/2 | 24-5/8 |
| GMC | Canyon | Short Box | 2004-2012 | 61-1/4 | 1-1/2 | 24-5/8 |
| Ram | Dakota | Extra Short Box | 2005-2011 | 61-1/4 | 1-1/2 | 24-5/8 |
| Ram | Dakota | Short Box | 2005-2011 | 61-1/4 | 1-1/2 | 24-5/8 |
| Toyota | Tacoma | Extra Short Box | 2005-2015 | 61-1/4 | 1-1/2 | 24-5/8 |
| Toyota | Tacoma | Extra Short Box | 2016+ | 61-1/4 | 1-1/2 | 24-5/8 |
| Toyota | Tacoma | Short Box | 2005-2015 | 61-1/4 | 1-1/2 | 24-5/8 |
| Toyota | Tacoma | Short Box | 2016+ | 61-1/4 | 1-1/2 | 24-5/8 |
Additional Information
- Estimated install time: 0.3 hour(s)
- Shipping weight: 20 lb
- Box dimensions: 71 in × 30 in × 3 in
- Available in mill-finish aluminum or black powder coat
