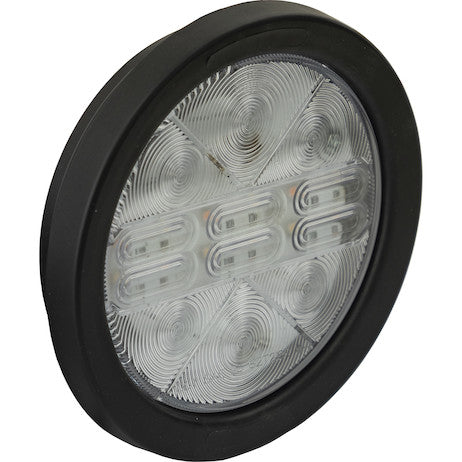

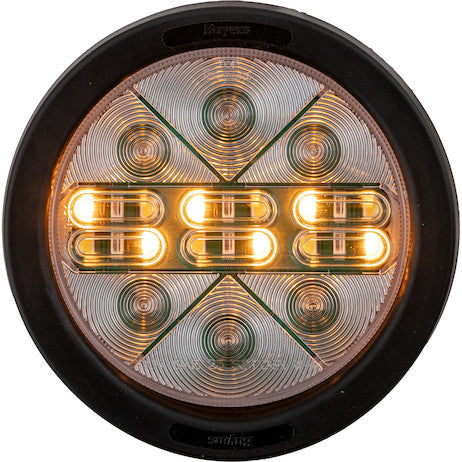

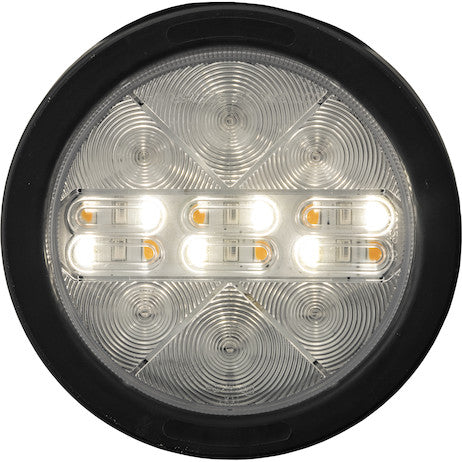

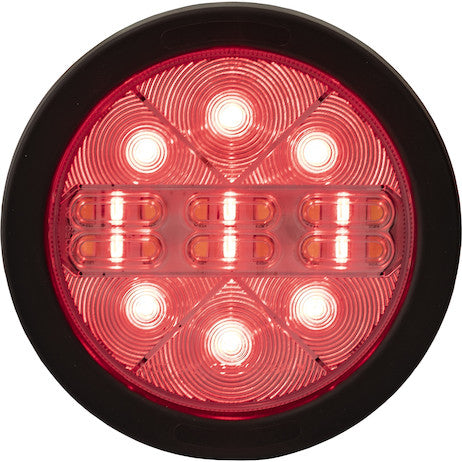

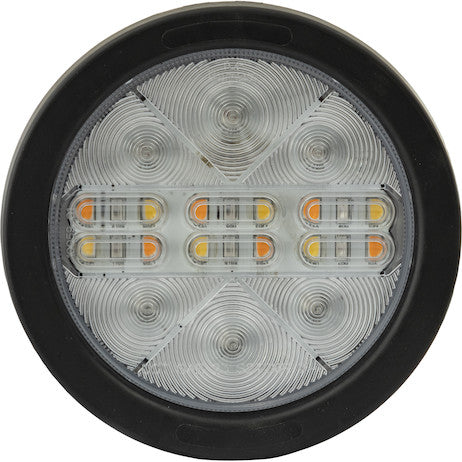

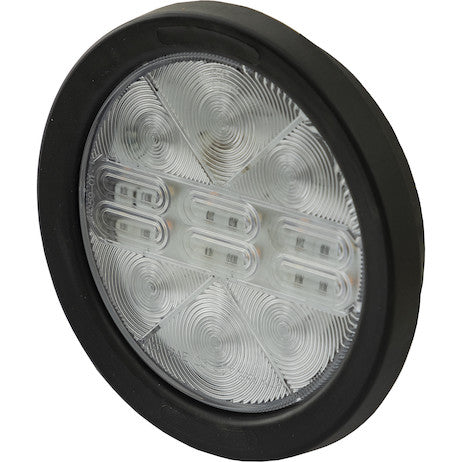

Buyers Products Combination LED Stop/Turn/Tail, Backup, and Strobe Light packs a DOT stop/turn/tail, DOT backup, and amber warning strobe into a single all-purpose fixture.
This versatile light is CA13 certified and rated IP69K for extreme dust resistance and waterproofing. The Stop/Turn/Tail and Backup functions meet FMVSS/CMVSS 108 regulations. The amber strobe features 19 flash patterns and is rated SAE Class 1 J595 Class 1. It also has synchronous and alternating capabilities when paired with other strobes.
Multiple mounting options are included for your convenience. A grommet and mounting hardware are included for surface or recessed mounting. The light has 7-3/4 in. leads with blunt cut ends.
5626424: 6 Inch Oval Light
5624424: 4 Inch Round Light
- 5626424 features a Patent Pending combination light optic design.
- A DOT backup light, a DOT stop/turn/tail light, and an amber strobe light all in one convenient fixture.
- DOT lights meet FMVSS/CMVSS 108 regulations.
- Strobe function features 19 flash patterns and has synchronous and alternating functions.
- Rated SAEJ595 Class 1.
- CA13 certified.
Specifications
- Amp draw at 12 Volts: 1.1 A
- Color: Amber/Red
- Depth: 4.13 in.
- Flash Patterns: 19
- Hard Wired or Plug: Hard Wired
- Height: 4.29 in.
- Housing Material: Aluminum
- IP Rating: IP69K
- Lead Length: 7.75 in.
- Lens Material: Polycarbonate
- Lens Shape: Round
- Mount Type: Grommet or Surface Mount
- Number of LEDs: 24
- Number of Wires: 7
- Overall Width: 0.55 in.
- SAE Classification: Class 1
- Type of Plug: Blunt Cut
- Voltage: 10-33 VDC
- Wattage: 16 W
