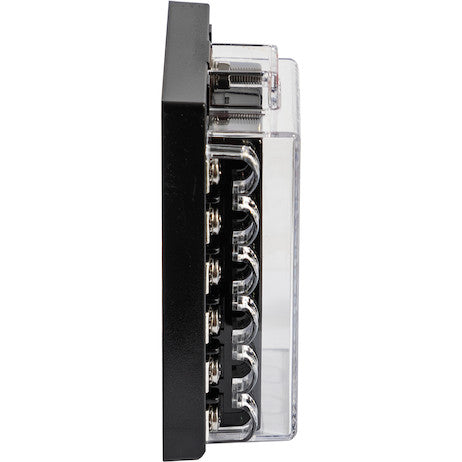

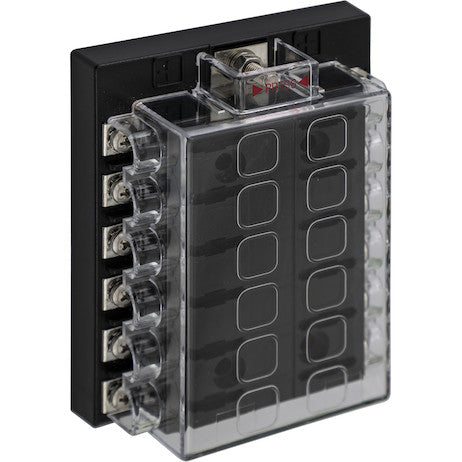

Buyers Products Fuse Block with Cover provides supplemental power distribution for most truck accessories. It is an ATC blade-type fuse panel with a clear plastic cover and black plastic base. It comes with self-adhesive labels to designate the various fuse functions.
It has 25A per circuit with 150A max per block.
Available in 6-way or 12-way configuration.
- Provides supplemental power distribution for common truck accessories.
- Can be used with ATC/ATO blade-type fuses (fuses not included).
- Includes two tin-plated copper 10-32 studs; and six tin-plated copper terminal screws.

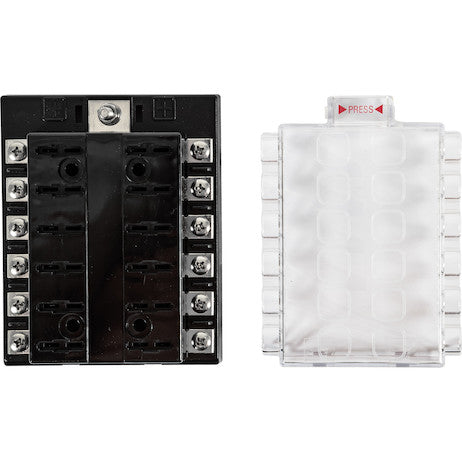

- Has clear polycarbonate removable cover for easy viewing.

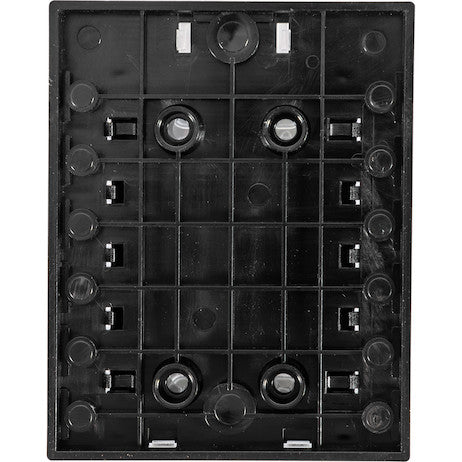

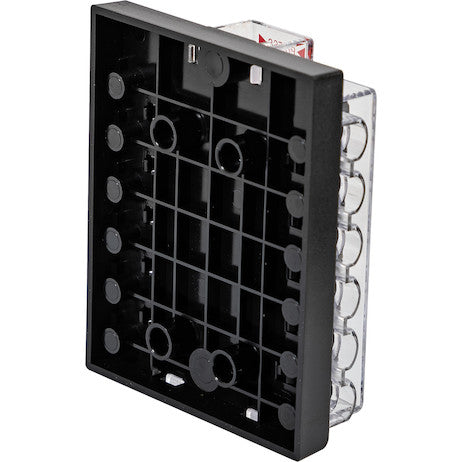

- Features a black polycarbonate based with four mounting holes that accommodate #10 mounting screws.

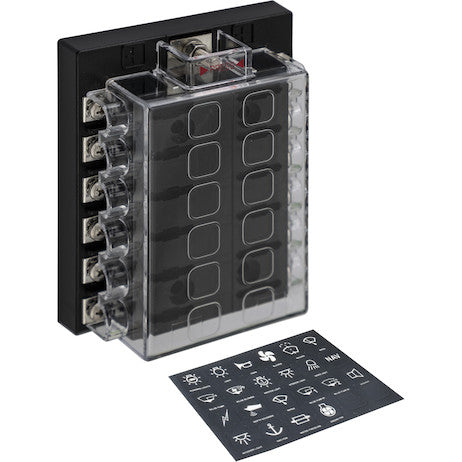

- Also includes self-adhesive pre-printed function labels.
- Available in 6-way or 12-way configuration.
Specifications
- Amps Max per Block: 100.0 A
- Amps Max per Circuit: 25.0 A
- Box Material: Plastic
- Color: Clear
- Depth: 1.6
- Length: 2.636 in.
- Material: Plastic
- Max Volts: 24.0 VDC
- Reset: Auto
- Studs Material: Carbon Steel
- Trip Current: 25 A
- Waterproof (y/n): No
- Width: 3.644 in.
