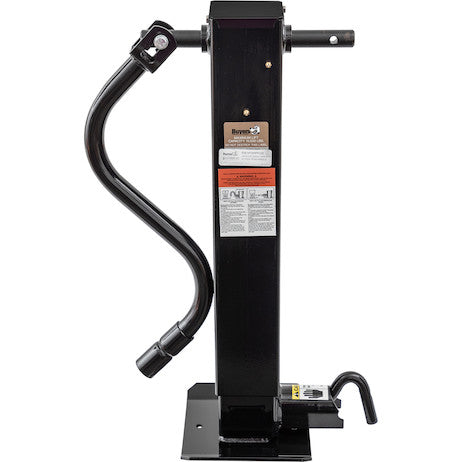

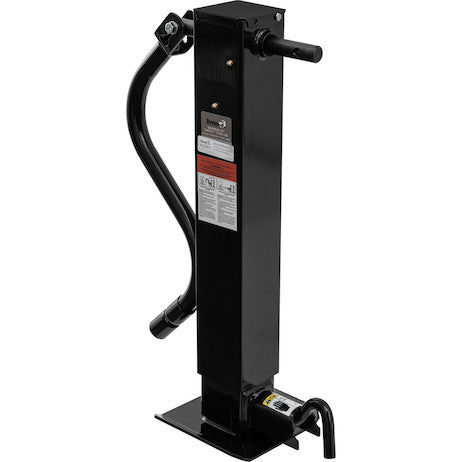

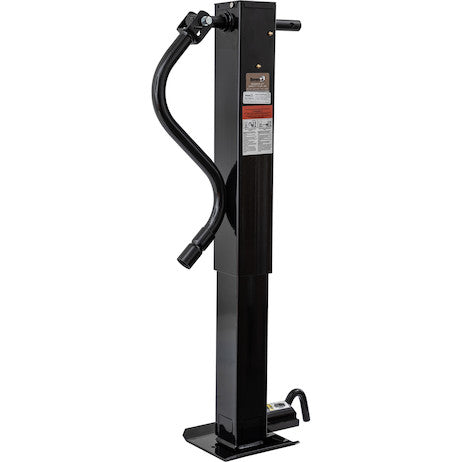

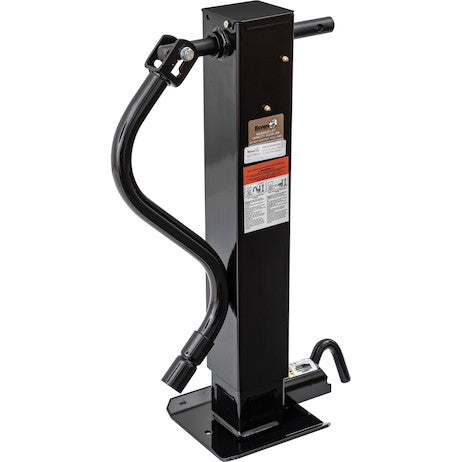

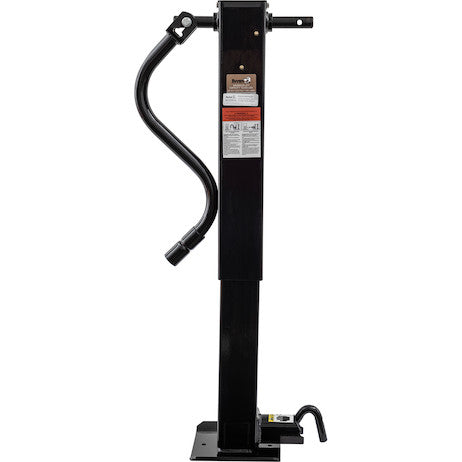

The Side-Pin Heavy Duty Square Jack from Buyers Products features a spring-return drop leg that allows easier expanding and retracting. The spring return is activated by pulling a sturdy side-mounted pin to drop the leg.
Ideal for RVs, construction trailers and triaxial trailers, each jack has a 10,000 lb (dynamic) and 12,000 lb (static) capacity.
The 4 in. square tube features a weather-resistant black powder-coated finish, and includes a footpad.
Note: If using dual jacks, use the front pin style of this product.
39.72" fully extended; 27.28" fully retracted.
- Easy retraction and expansion with the spring return mechanism.
- Strong, durable 4-in. square construction will handle up to 10,000 lb (dynamic) and 12,000 lb (static).
- Corrosion-resistant black powder-coated finish.
- Can be ordered with or without handle.
- Foot pad measures 8 1/4" x 8 1/2" (the side of the foot with the flared ends is 8 1/2").
Specifications
- Color: Black
- Dynamic Capacity: 10,000 lb
- Extended Length (in.): 54 in.
- Finish: Powder-Coat
- Foot: Spring assist foot return: Foot pad retracts with spring assist when locking pin is disengaged.
- Material: Carbon Steel
- Retracted Length (in.): 28.5 in.
- Square/Round: Square
- Static Capacity (lbs): 12,000 lb
- Travel (in.): 13 in.
- Type: Weld On
- Wind: Side Wind
