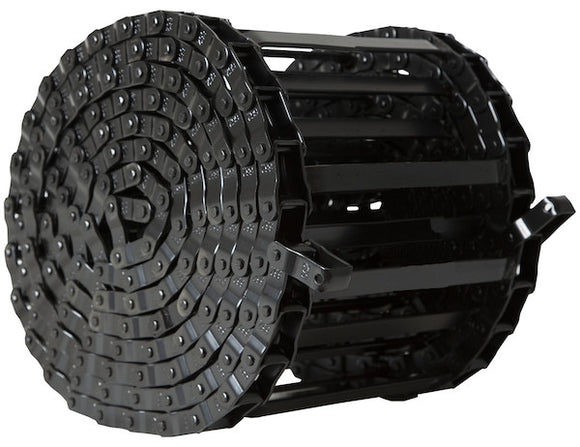

A replacement main pintle chain supplied at 8 ft. long with 122 links and a D662 pitch number. Pintle chain is a wear item, so most buyers are replacing a stretched or damaged chain rather than specifying one from scratch. Measure the chain coming off the machine and match the pitch number, bar count and bar spacing below before ordering, since visually similar chains run different pitches.
- 8 ft. overall chain length, 122 links
- D662 pitch number
- 41 bars spaced 4.99 in. apart
- Bars measure 0.75 in. wide by 0.187 in. thick
- 10.35 in. centre to centre
Specifications
- Chain length: 8.0 ft.
- Pitch number: D662
- Bar quantity: 41
- Bar spacing: 4.99 in.
- Bar width: 0.75 in.
- Bar thickness: 0.187 in.
- Centre to centre: 10.35 in.
