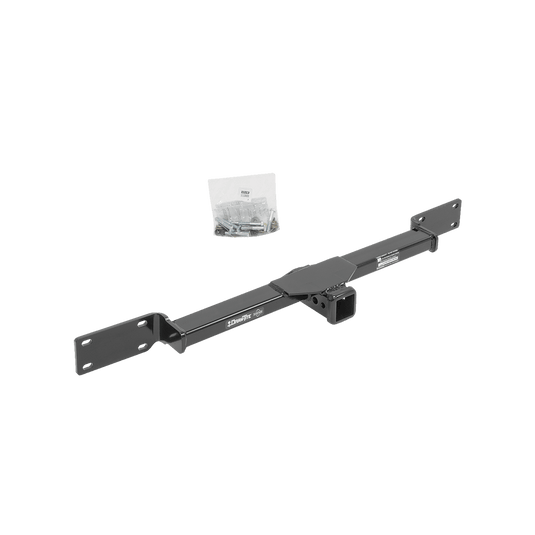

Draw-Tite's 65063 is a front-mount receiver hitch cut for 2010-2018 Dodge & Ram. Rated to 500 lb gross trailer weight and 500 lb tongue weight. Maximum line pull is 9,000 lb, so it will take a winch mount. The receiver is a 2" opening on a square tube crossmember that bolts to the vehicle frame without drilling.
- Rated to 500 lb gross trailer weight and 500 lb tongue weight
- Maximum line pull 9,000 lb
- 2" receiver tube
- Square tube crossmember
- Custom-built to the vehicle's factory mounting points
- No drilling required
- Mounting hardware included
- Tested to SAE J684 and V-5
- All-welded steel construction
- Black Powder Coat Over E-Coat finish
- Limited Lifetime Warranty
Specifications
| Part number | 65063 |
|---|---|
| Receiver size | 2" |
| Gross trailer weight | 500 lb |
| Tongue weight | 500 lb |
| Maximum line pull | 9,000 lb |
| Cross-tube | Square Tube |
| Mounting | bolt-on, vehicle frame |
| Attachment | front |
| Drilling required | No |
| Hardware included | Yes |
| Ball mount included | No |
| Finish | Black Powder Coat Over E-Coat |
| Material | Steel |
| Colour | Black |
| Shipping dimensions | 43.69" x 7.26" x 3-1/4" (Shipping) |
| Weight | 24 lb |
| UPC | 742512650631 |
| Warranty | Limited Lifetime Warranty |
| Fits | 2010-2018 Dodge & Ram |
