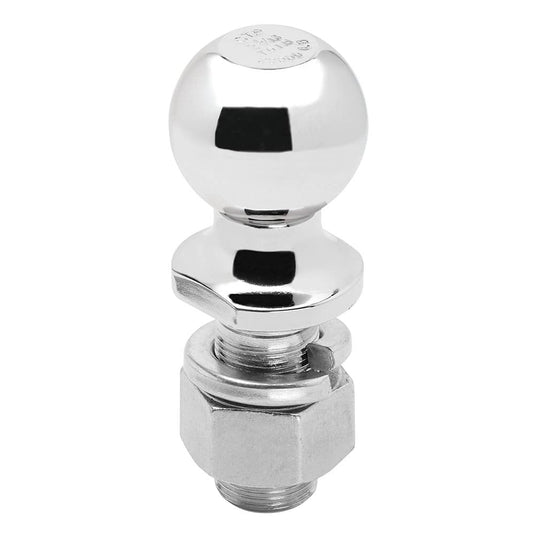

Draw-Tite's 63864 is a class 4 trailer ball with a 2-5/16" ball on a 1-1/4" shank. Rated to 25,000 lb with 2,500 lb of tongue weight. It suits a drawbar 3/8" to 1" thick. Built in steel with a chrome finish. The ball is heat hardened for wear resistance.
- Rated for class 4 towing
- 2-5/16" ball diameter
- 1-1/4" shank diameter
- 2-1/2" shank length
- Capacity 25,000 lb
- Tongue weight 2,500 lb
- Fits a drawbar 3/8" to 1" thick
- Heat hardened
- Hex nut included
- Lock washer included
- Steel construction
- Chrome finish
- Limited 1 Year Warranty
Specifications
| Part number | 63864 |
|---|---|
| Type | Trailer Hitch Ball |
| Hitch class | Class IV |
| Ball diameter | 2-5/16" |
| Shank diameter | 1-1/4" |
| Shank length | 2-1/2" |
| Capacity | 25,000 lb |
| Tongue weight | 2,500 lb |
| Drawbar thickness | 3/8" to 1" |
| Heat hardened | Yes |
| Hex nut size | 1-1/2" |
| Finish | Chrome |
| Material | Steel |
| Colour | Silver |
| Shipping dimensions | 6.26" x 2-3/4" x 2.65" (Shipping) |
| Weight | 2.7 lb |
| UPC | 016118134322 |
| Warranty | Limited 1 Year Warranty |
