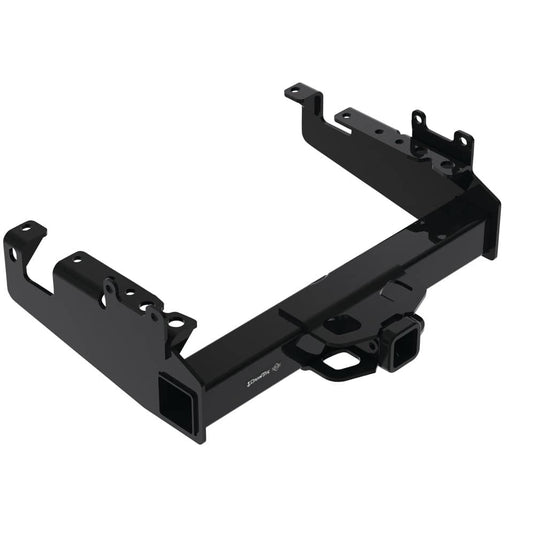

Draw-Tite's 45520 is a Titan class 5 receiver hitch cut for 2019-2026 Ford F-350 Super Duty/F-450 Super Duty/F-550 Super Duty. Rated to 20,000 lb gross trailer weight and 3,000 lb tongue weight. It also takes a weight-distribution setup to 20,000 lb with 2,000 lb of tongue weight. The receiver is a 2-1/2" opening on a square tube crossmember that bolts to the vehicle frame without drilling.
- Rated to 20,000 lb gross trailer weight and 3,000 lb tongue weight
- Weight distribution rated to 20,000 lb / 2,000 lb tongue weight
- 2-1/2" receiver tube
- Square tube crossmember
- Custom-built to the vehicle's factory mounting points
- No drilling required
- Mounting hardware included
- Tested to SAE J684 and V-5
- All-welded steel construction
- Black Powder Coat Over E-Coat finish
- Limited Lifetime Warranty
Specifications
| Part number | 45520 |
|---|---|
| Hitch class | Class V |
| Receiver size | 2-1/2" |
| Gross trailer weight | 20,000 lb |
| Tongue weight | 3,000 lb |
| Gross trailer weight (WD) | 20,000 lb |
| Tongue weight (WD) | 2,000 lb |
| Cross-tube | Square Tube |
| Mounting | bolt-on, vehicle frame |
| Attachment | rear |
| Drilling required | No |
| Hardware included | Yes |
| Ball mount included | No |
| Finish | Black Powder Coat Over E-Coat |
| Material | Steel |
| Colour | Black |
| Shipping dimensions | 35.01" x 27.652" x 10.64" (Shipping) |
| Weight | 96.5 lb |
| UPC | 016118160789 |
| Warranty | Limited Lifetime Warranty |
| Fits | 2019-2026 Ford F-350 Super Duty/F-450 Super Duty/F-550 Super Duty |
