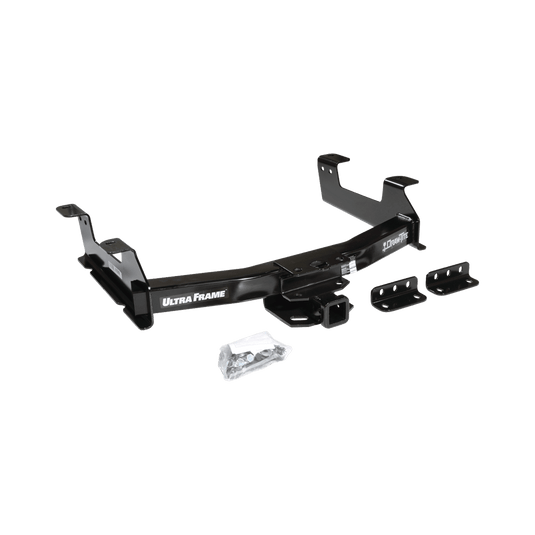

Draw-Tite's 41942 is a Ultra Frame class 5 receiver hitch cut for 2011-2014 Chevrolet & GMC. Rated to 15,000 lb gross trailer weight and 1,500 lb tongue weight. It also takes a weight-distribution setup to 16,000 lb with 1,600 lb of tongue weight. The receiver is a 2" opening on a square tube crossmember that bolts to the vehicle frame without drilling.
- Rated to 15,000 lb gross trailer weight and 1,500 lb tongue weight
- Weight distribution rated to 16,000 lb / 1,600 lb tongue weight
- 2" receiver tube
- Square tube crossmember
- Custom-built to the vehicle's factory mounting points
- No drilling required
- Mounting hardware included
- Tested to SAE J684 and V-5
- All-welded steel construction
- Black Powder Coat Over E-Coat finish
- Limited Lifetime Warranty
Specifications
| Part number | 41942 |
|---|---|
| Hitch class | Class V |
| Receiver size | 2" |
| Gross trailer weight | 15,000 lb |
| Tongue weight | 1,500 lb |
| Gross trailer weight (WD) | 16,000 lb |
| Tongue weight (WD) | 1,600 lb |
| Cross-tube | Square Tube |
| Mounting | bolt-on, vehicle frame |
| Attachment | rear |
| Drilling required | No |
| Hardware included | Yes |
| Ball mount included | No |
| Finish | Black Powder Coat Over E-Coat |
| Material | Steel |
| Colour | Black |
| Shipping dimensions | 41-3/4" x 29-1/2" x 10" (Shipping) |
| Weight | 67 lb |
| UPC | 742512419429 |
| Warranty | Limited Lifetime Warranty |
| Fits | 2011-2014 Chevrolet & GMC |
