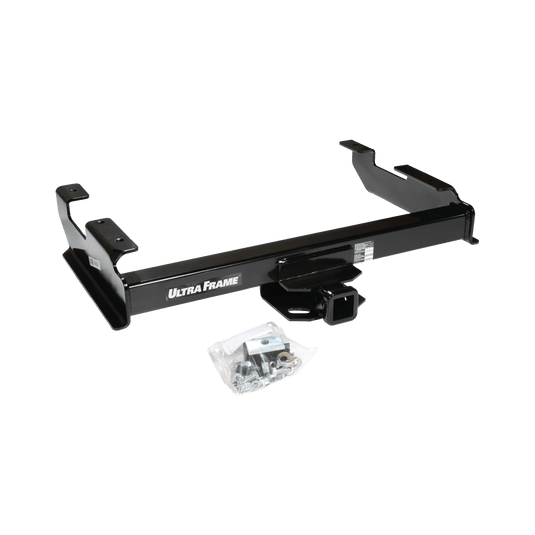

Draw-Tite's 41901 is a Ultra Frame class 5 receiver hitch cut for 1988-1998 Chevrolet & GMC. Rated to 10,000 lb gross trailer weight and 1,000 lb tongue weight. It also takes a weight-distribution setup to 13,000 lb with 1,300 lb of tongue weight. The receiver is a 2" opening on a square tube crossmember that bolts to the vehicle frame.
- Rated to 10,000 lb gross trailer weight and 1,000 lb tongue weight
- Weight distribution rated to 13,000 lb / 1,300 lb tongue weight
- 2" receiver tube
- Square tube crossmember
- Custom-built to the vehicle's factory mounting points
- Mounting hardware included
- Tested to SAE J684 and V-5
- All-welded steel construction
- Black Powder Coat Over E-Coat finish
- Limited Lifetime Warranty
Specifications
| Part number | 41901 |
|---|---|
| Hitch class | Class V |
| Receiver size | 2" |
| Gross trailer weight | 10,000 lb |
| Tongue weight | 1,000 lb |
| Gross trailer weight (WD) | 13,000 lb |
| Tongue weight (WD) | 1,300 lb |
| Cross-tube | Square Tube |
| Mounting | bolt-on, vehicle frame |
| Attachment | rear |
| Drilling required | Yes |
| Hardware included | Yes |
| Ball mount included | No |
| Finish | Black Powder Coat Over E-Coat |
| Material | Steel |
| Colour | Black |
| Shipping dimensions | 39" x 27" x 5" (Shipping) |
| Weight | 72.8 lb |
| UPC | 742512419016 |
| Warranty | Limited Lifetime Warranty |
| Fits | 1988-1998 Chevrolet & GMC |
