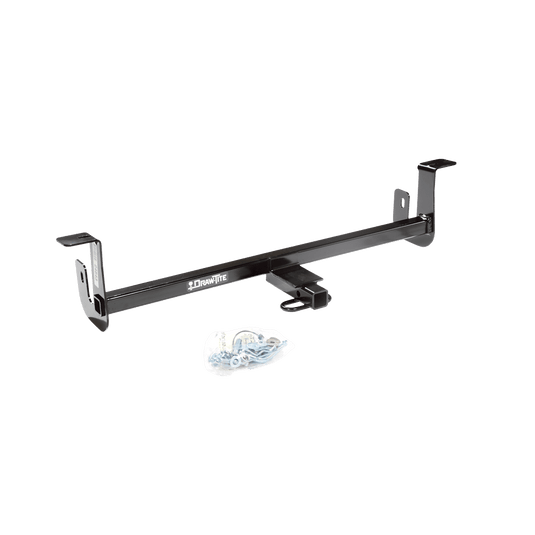

Draw-Tite's 24843 is a class 1 receiver hitch cut for 2010-2013 Mazda 3. Rated to 2,000 lb gross trailer weight and 200 lb tongue weight. The receiver is a 1-1/4" opening on a square tube crossmember that bolts to the vehicle frame without drilling.
- Rated to 2,000 lb gross trailer weight and 200 lb tongue weight
- 1-1/4" receiver tube
- Square tube crossmember
- Custom-built to the vehicle's factory mounting points
- No drilling required
- Mounting hardware included
- Tested to SAE J684 and V-5
- All-welded steel construction
- Black Powder Coat Over E-Coat finish
- Limited Lifetime Warranty
Specifications
| Part number | 24843 |
|---|---|
| Hitch class | Class I |
| Receiver size | 1-1/4" |
| Gross trailer weight | 2,000 lb |
| Tongue weight | 200 lb |
| Cross-tube | Square Tube |
| Mounting | bolt-on, vehicle frame |
| Attachment | rear |
| Drilling required | No |
| Hardware included | Yes |
| Ball mount included | No |
| Finish | Black Powder Coat Over E-Coat |
| Material | Steel |
| Colour | Black |
| Shipping dimensions | 39.88" x 11-3/4" x 9.13" (Shipping) |
| Weight | 17.1 lb |
| UPC | 742512248432 |
| Warranty | Limited Lifetime Warranty |
| Fits | 2010-2013 Mazda 3 |
