Camera Kit: Gemineye, 7.0" LCD, color, 4 pin, expandable up to 3 cameras, 12-24VDC (includes EC7003-M, EC2014-C & ECTC20-4)

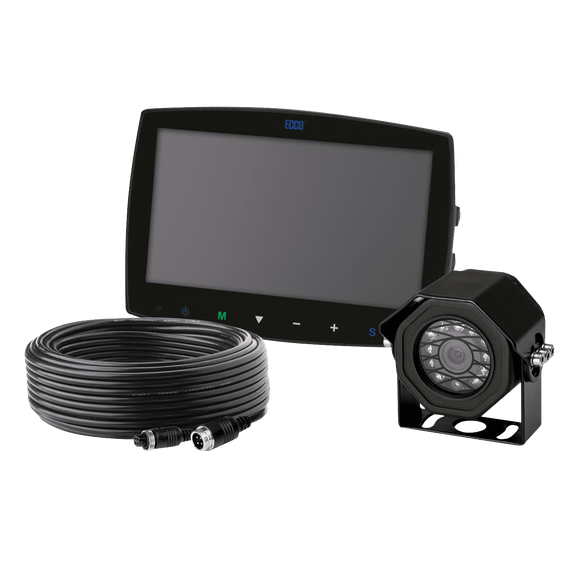

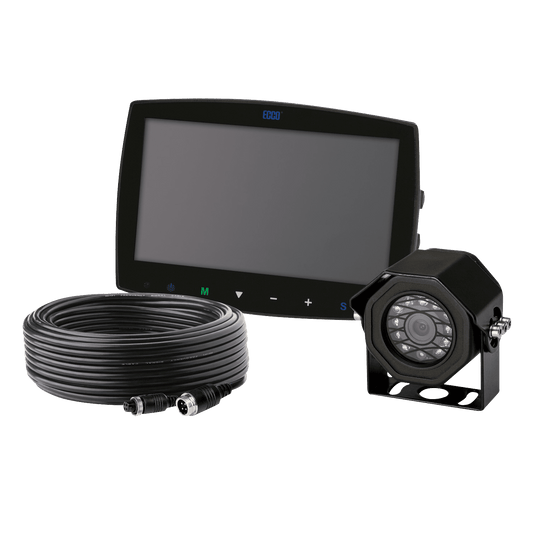

Ecco EC7003-KEcco EC7003-K Gemineye™ 7” LCD Color System
The 7” LCD high-resolution touchscreen color monitor included with this system provides the optimal viewing area for mobile CCTV applications. Excellent picture quality is assured even in low-light conditions using ECCO’s CMOS color infrared camera. The flat, widescreen monitor allows unobtrusive mounting with a large, easily viewable screen area, expandable up to 3 cameras. (includes EC7003-M, EC2014-C & ECTC20-4)
Features & Benefits
- Touchscreen menu control
-  CMOS 11 LED infrared camera
-  Includes monitor sunshade
-  Three camera expandable
EC7003-M                                                    EC2014-C
Internal controller:  Yes                               Color:  Yes
Color:  Yes                                                   Power Consumption (W): 3.0
Voltage:  12-24                                           Microphone: Yes
Power consumption (W):  6.0                     Day / night light sensor:  Yes
Audio: Yes                                                   Dimensions: 2.87” x 2.99” x 2.60”
Day / night light sensor:  Yes                      Weight: 0.74 lbs.
Dimensions:  8.4” x 6” x 2.8”                       Temperature (Fº):   -22 to +158
Weight:  1.8 lbs.                                           Lens size: 1/3”
Temperature (Fº):  -4 to +158                      Lens angle: 120°
Screen size:  7.0”                                          Infrared LEDs: 11
Mirror Image: Yes                                         4 pin camera connection: Yes
Remote control: Yes
Quad View: Yes
Sunshade: Yes
Max cameras: 4
4 pin camera connection: Yes
