Directional LED: Surface mount, 13 flash patterns, 12-24VDC

Ecco ED3701A: DIRECTIONAL LEDS ED3701 Series Single- or Split-Color Surface Mount

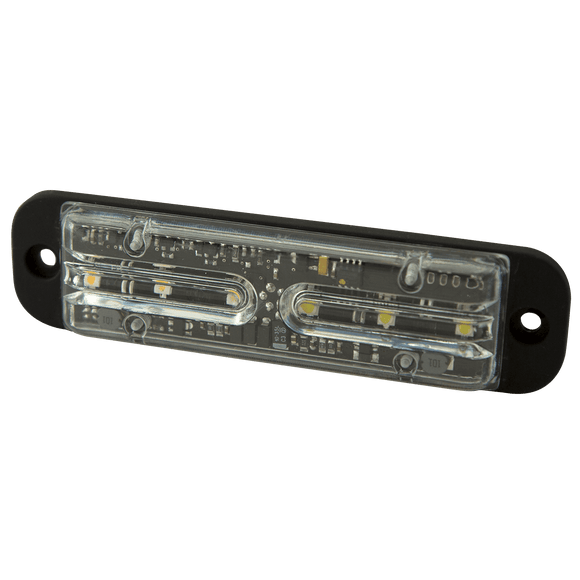

ED3701 directional LEDs are bright and versatile warning lights that are suited to a wide variety of applications. Their ultra-low profile makes them easy to install virtually anywhere on a vehicle. Models offer wide-angle optics and multiple flash patterns, including synchronization with other units for simultaneous or alternating operation. ED3701 models feature 6 LEDs and are available in either single-color or split-color configurations (3 LEDs of each color).

Models

PART NO.                            TYPE                      ILLUMINATION COLOR OPTIONS

ED3701X                               Single                    Amber/Blue/Clear/Green/Red

ED3701XX                            Split                       AB, AC, AG, AR, BC, RB, RC

Replace “X” in part number with desired color: A=amber, B=blue, C=clear, G=green, R=red

Design Features

• 12-24 VDC, 0.8 Amps
• High-intensity LEDs provide exceptional warning
• 29 flash patterns
• Ultra low-profile surface mount
• Synchronizable
• Die-cast base with polycarbonate lens
• Temperature Range: -22¬∫F to +122¬∫F (-30¬∫C to +50¬∫C)
