3811 / 3861 SERIES  Surface / Grommet Mount

3811 / 3861 SERIES Surface / Grommet Mount

Ecco 3861A

Ecco

  • $132.44
All Pricing in CAD. All Products Ship From Canada

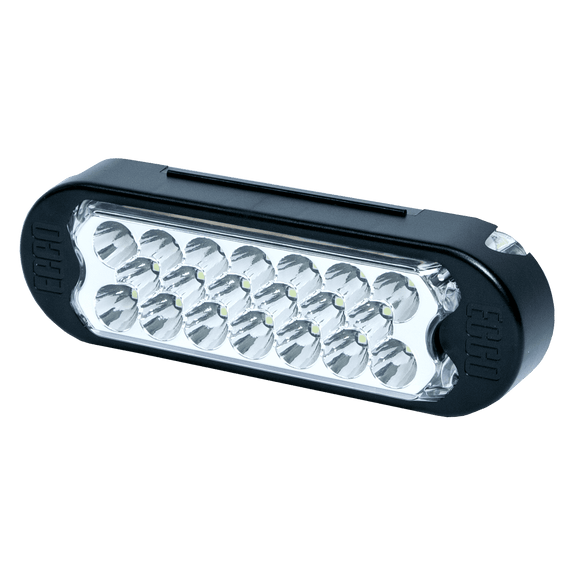

3811 and 3861 Series directional LEDs feature 20 high-intensity LEDs with individual reflectors to provide truly outstanding light output in a very cost-effective package. Single- or dual-color models provide synchronization capability, and are available in either surface- or grommet-mount configurations—offering fit-and-forget, maintenance-free operation and low amp draw.

Model

PART NO.        MOUNT                     ILLUMINATION COLOR

3861A               Single Grommet             Amber

Design Features

  • 12-24VDC,0.4Amps
  • Tough, clear polycarbonate housing with encapsulated electronics
  •  7 flash patterns for single-color and 41 flash patterns for dual-color
  • Sync-capable with additional 3811/3861
  • Discrete units are colorless when not illuminated
  • Grommet-mount versions fit standard oval rear lighting grommet
  • Temperature Range: -40°F to +158°F (-40°C to +70°C)



SPECIFICATIONS

COLOR AMBER
MOUNT GROMMET
FLASH PATTERN 7
APPROVAL SAE CLASS I, CA T13, CE, UKCA, R10, R65, IP67, IP69K, ROHS
HEIGHT 2.2
LENGTH / WIDTH 6.5
DEPTH 1.2
WARRANTY 5 YEAR
VOLTAGE 12-24 V
AMPS 0.4
