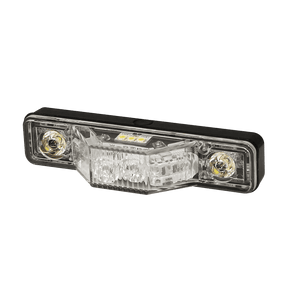

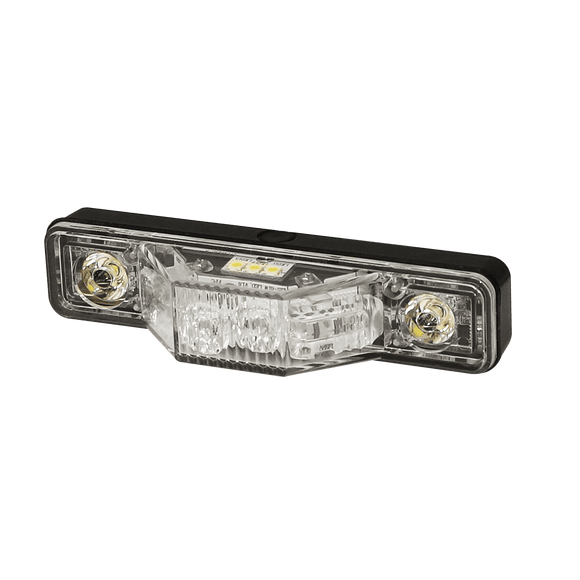

Directional LED: Multi-mount, 12-24VDC, 180 degrees
Ecco ED3777AEcco ED3777A: DIRECTIONAL LEDS ED3777 SERIES Multi-Mount
The ED3777 directional LEDs are bright and versatile 180° warning lights, with work and puddle light combinations that are suited to a wide variety of applications. Its low profile, narrow shape and multiple mounting options (surface, edge, self-adhesive and permanent) provide superior flexibility when positioning the lights for optimum warning capability.
Models
PART NO.      TYPE                     ILLUMINATION COLOR OPTIONS             AMP
ED3777X        Single                    Amber, Blue, Green, Red                             1.3
Replace “X” in part number with desired color: A=amber, B=blue, G=green, R=red
Design Features
- 12-24 VDC
- 180° warning with work light and puddle light
- Six LEDs per color
- 29 flash patterns (single), 69 flash patterns (dual)
- Sync-capable
- Aluminum housing, polycarbonate lens
- Four mounting options (hardware included)
- Temperature Range: -22ºF to +122ºF (-30ºC to +50ºC)
