Directional LED: Dual-color, surface/swivel bracket/clamp/self-adhesive mount, 12 flash patterns, 12-24VDC, amber/blue

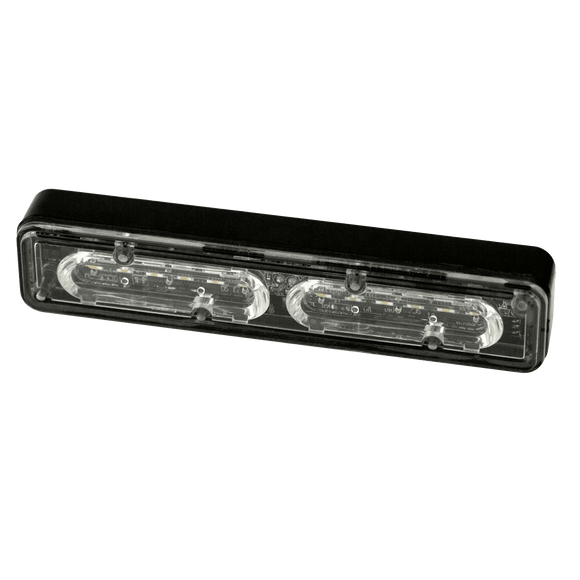

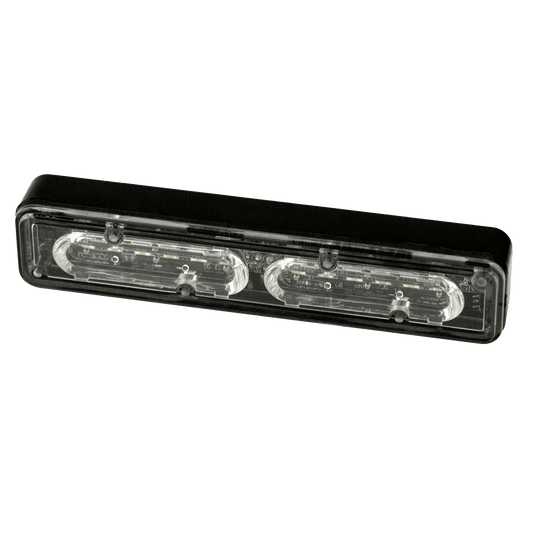

Ecco ED3712ABEcco ED3712AB: DIRECTIONAL LEDS ED3712 Series Dual-Color Multi-Mount
The ED3712 series directional is a low profile LED. This warning light offers the flexibility of two or three different color outputs within a single unit, comprised of high intensity LEDs, six of each color. Ideal for a wide variety of applications, the ED3712 offers the flexibility of four mounting options: surface mount, tilt bracket, self-adhesive mount, and edge mount (all necessary hardware is included with each light). Featuring 69 flash patterns and synchronization capability, this super bright LED is designed for maximum light output at all angles. Each model can be programmed to flash each color option individually or alternately.
Models
PART NO.     TYPE     ILLUMINATION COLOR OPTIONS        AMPS    FLASH PATTERNS
ED3712XX    Dual        AB, AC, AG, AR, BC, RB, RC                  1.25              69
Replace “XX” in part number with desired color: A=amber, B=blue, C=clear, G=green, R=red
Design Features
- 12-24 VDC
- 12 high intensity LEDs (ED3712XX)
- Low profile with 4 mounting options
- Sync-capable
- Aluminum housing, polycarbonate lens
- Temperature Range: -22ºF to +122ºF (-30ºC to +50ºC)
