Directional LED: Dual-color, surface mount, 12 flash patterns, 12-24VDC

Ecco  ED3702AB: DIRECTIONAL LEDS ED3702 Series Dual- or Tri-Color Surface Mount

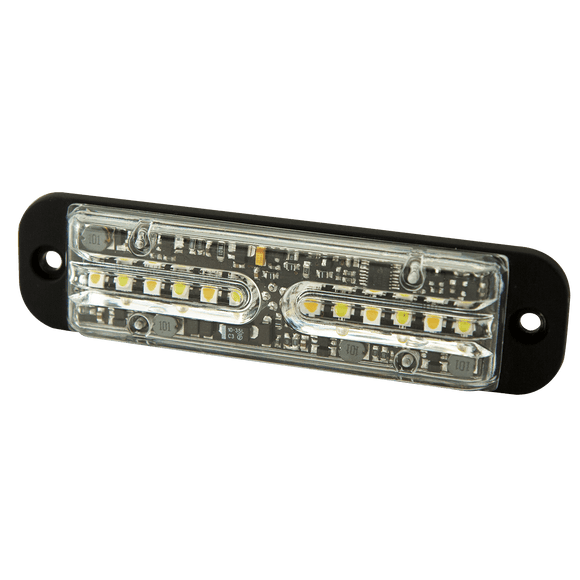

ED3702 directional LEDs are bright and versatile warning lights suited to a wide variety of applications. Their ultra-low profile makes them easy to install virtually anywhere on a vehicle. Both models offer wide angle optics and multiple flash patterns, including synchronization with other units for simultaneous or alternating operation. The ED3702XX is a dual-color light featuring 12 LEDs (6 of each color) and is available in 7 color configurations.

Models

PART NO.          TYPE      ILLUMINATION COLOR OPTIONS      AMPS   FLASH PATTERNS

ED3702XX          Dual          AB, AC, AG, AR, BC, RB, RC             1.25                   69

Replace “XX” in part number with desired color: A=amber, B=blue, C=clear, G=green, R=red

Design Features

• 12-24 VDC
• High-intensity LEDs provide exceptional warning
• Ultra low-profile surface mount
• Synchronizable
• Die-cast base with polycarbonate lens
• Temperature Range: -22¬∫F to +122¬∫F (-30¬∫C to +50¬∫C)
