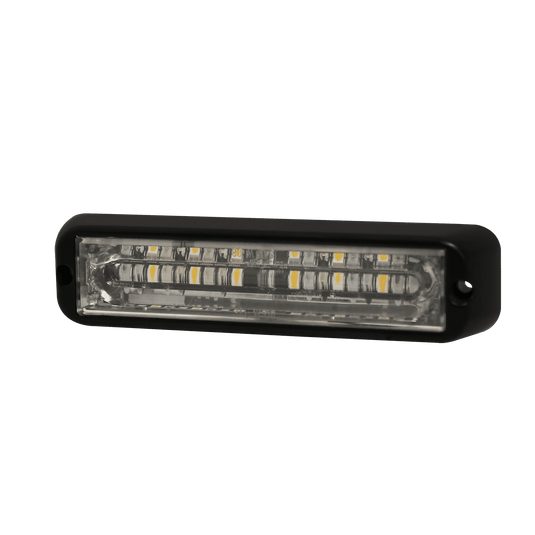

Directional LED: Dual-color, surface mount, 12-24VDC, 12 flash patterns, amber/blue

Ecco ED3766AB: DIRECTIONAL LEDS ED3766 SERIES Dual-Color Surface Mount

The ED3766 Series directional LED warning light offers the flexibility of two or three different color outputs within a single unit, comprised of 12 high intensity LEDs, six of each color. SAE Class I light output, synchronization capability and the choice of multiple flash patterns allows the creation of an attention-getting multi-color warning system with half the number of lights typically required. Each model can be programmed to flash each color option individually or alternate colors.

Models

PART NO.            TYPE           ILLUMINATION COLOR OPTIONS           FLASH PATTERNS

ED3766XX            Dual                AB, AC, AG, AR, RB                                  69

Replace “XX” in part number with desired color: A=amber, B=blue, C=clear, G=green, R=red

Design Features

• 2-24 VDC, 0.8 Amps
• 12 high-intensity LEDs provide exceptional warning
• Six LEDs per color
• Sync-capable
• Aluminum housing, polycarbonate lens
• Temperature Range: -22¬∫F to +122¬∫F (-30¬∫C to +50¬∫C)
