Camera/Sensor Kit: Gemineye, 7.0" LCD Monitor & Components
Ecco EC7004-SK

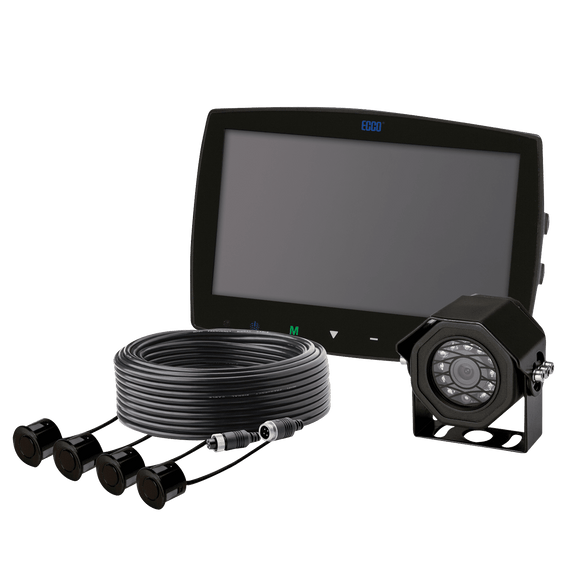

Ecco EC7004-SK Gemineye™ 7” LCD Color Reversing Sensor System
ECCO camera / sensor systems take driver warning to the next level, integrating an ultrasonic obstacle detection system that adds passive protection in addition to warning lights, back-up alarms and standard camera systems. While standard systems only alert danger if the driver is using the monitor, an integrated sensor system will alert the driver audibly and visually before a collision is imminent, immediately directing attention to the camera system monitor and danger zone at the rear of the vehicle. (includes EC7003-M, EC2015-C, EC1005, EC-CB04, EC-RS04 & PC-1004)
Features & Benefits
- Widescreen monitor
- Integrated ultrasonic proximity sensors
- CMOS 11 LED infrared camera
- Three camera expandable Touchscreen menu control
EC7003-M                                                  EC2014-C
Internal controller:  Yes                               Color:  Yes
Color:  Yes                                                   Power Consumption (W): 3.0
Voltage:  12-24                                            Microphone: Yes
Power consumption (W):  6                        Day / night light sensor:  Yes
Audio: Yes                                                   Dimensions: 2.87” x 2.99” x 2.60”
Day / night light sensor:  Yes                      Weight: 0.74 lbs.
Dimensions:  8.4” x 6” x 2.8”                       Temperature (Fº):   -22 to +158
Weight:  3.3 lbs.                                          Lens size: 1/3”
Temperature (Fº):  -4 to +158                     Lens angle: 120°
Screen size:  7.0”                                         Infrared LEDs: 11
Mirror Image: Yes                                        4 pin camera connection: Yes
Remote control: Yes
Quad View: Yes
Sunshade: Yes
Max cameras: 3
4 pin camera connection: Yes
