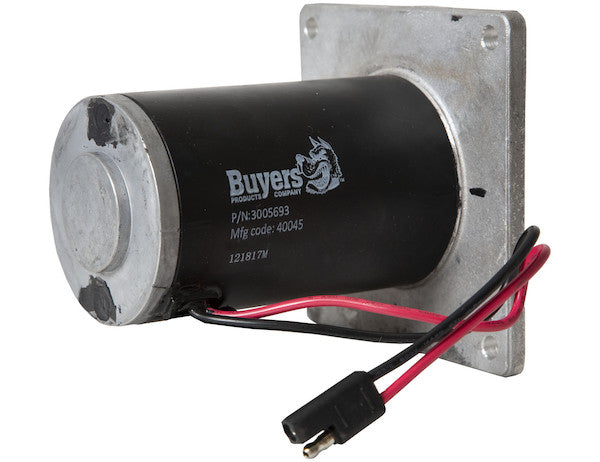

Replacement spinner motor for SaltDogg® TGSUV1B spreaders. It is a .125 HP, 12 VDC motor rated at 1000 RPM with an SAE connection and bi-directional rotation, built to the same 4.197 in. square mounting pattern as the original. Spinner motors take a beating from salt and brine, so crews running winter routes commonly stock one as a spare.
- Fits SaltDogg® TGSUV1B spreaders
- .125 HP motor rated at 1000 RPM
- 12 VDC power with SAE connection
- Bi-directional rotation
- 4.197 in. square mounting pattern, 0.500 in. shaft diameter
Because the mounting pattern and shaft dimensions follow the original, the swap is a straight bolt-in for a shop tech rather than a fabrication job. Buyers Products backs the motor with a 1 year warranty.
Specifications
- Power: .125 HP
- Speed: 1000 RPM
- Voltage: 12 VDC
- Rotation: Bi-directional
- Diameter: 3.000 in.
- Shaft diameter: 0.500 in.
- Mounting pattern: 4.197 in. square
- Warranty: 1 year
