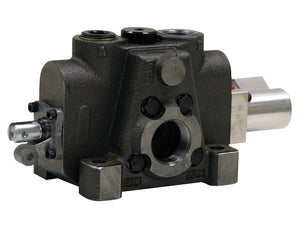

Hydraulic Valve

The Hydraulic Valve from Buyers Products is built to be tough and reliable for heavy duty dump truck hydraulic operations. It's rated at 35 GPM.

The 3-position, 3-way valve is pneumatically controlled (can also be shifted by handle, see "Accessories" below). It easily installs with 1 in. NPT inlet work ports and a 1-1/4 NPT return to tank.

The relief valve is preset at a maximum allowable 2000 PSI .

Product Common Use: Dump Trucks

Product Features

• Built tough for heavy-duty dump truck operations.

• Air-shifted, with an option for manual (handle) shifting.

• Sturdy cast iron construction.

• Allows 35 GPM flow.

• Relief valve can handle up to 2000 PSI .

• Applications that require critical load holding installer must use P.O. (Pilot Operated) checks or counter balance valves as well.


Product Details

• Main Relief Setting2000 PSI
• Maximum Pressure3000 PSI
• Power Beyond (Y/N)No
• Port Relief (Y/N)Yes
• Spool Action 1Power Up/Gravity Down - 1 Port Relief
• Maximum Flow Rate35 GPM
• Work Port Size1 NPT
• Inlet Port Size1 NPT
• Outlet Port Size1 1/4 NPT
• Electrically Operated (Y/N)N
• Port Relief AngleN PSI
• Port Relief Dump2000 PSI
